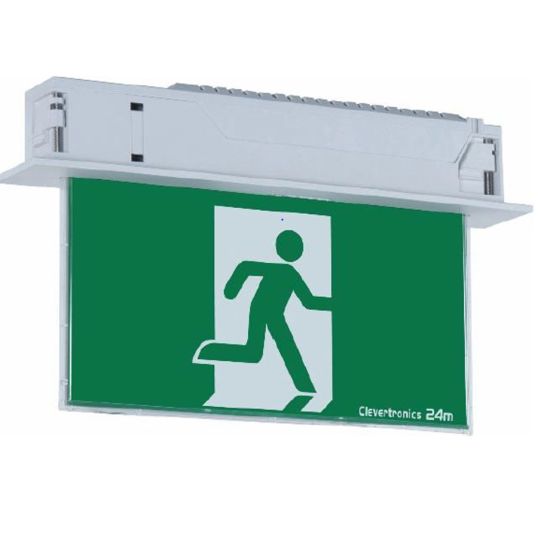

Clevertronics L10 Ultrablade Pro Exit Sign Recessed Blade 24m IP20

chevron-left

Description

chevron-down
The sophisticated look and design of the Ultrablade PRO will satisfy all architectural requirements for a premium recessed exit. With its low profile design, only 80 mm of ceiling space is required during installation, combine this with a reduced reflection and halo effect on the diffuser and a decal that is scratch and fingerprint resistant.. It is no wonder the Ultrablade PRO is the industry standard for an architectural blade exit.

Key Specifications

chevron-down
SKU
CLELUBPRO-HV
Brand
Clevertronics
Range Name
Ultrablade Pro Recessed
Product Type
Emergency Exits

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 39111700
UOM EA
Vendor Product LUBPRO-HV
Battery Type Lithium Nanophosphate
Colour White
Height 8.7 mm Blade Assembly
Input Frequency 50 Hz
Input Voltage 240 Volt AC
IP Rating IP20
Lamp Type 12 x Duris E3 LED/100000 hrs
Material Polycarbonate
Mounting Method Recessed/Ceiling
Operating Mode Maintained
Temperature 1 to 40 deg C
Viewing Distance 24 mtr
Width 157 mm Blade Assembly/67 mm Cover Plate
Wattage 2.8 Watt Standby/4.2 Watt Max
