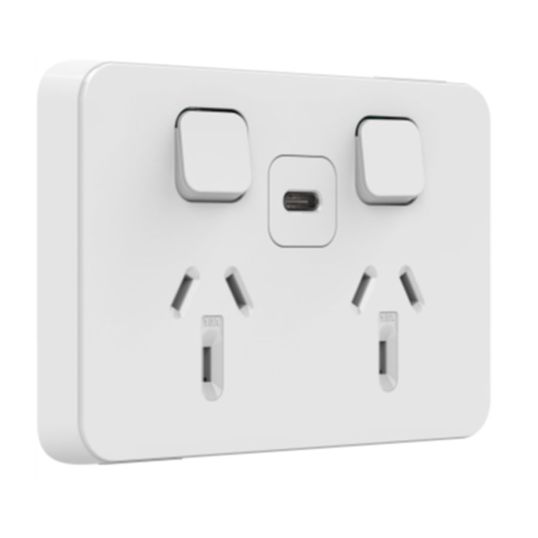

Clipsal Iconic Double Power Point w/USB Type C Fast Charger 25W 10A 220-240V
Description
This Clipsal Iconic twin socket comes with a Type C USB fast charger. The colour of the Iconic skin is Vivid White. The operating voltage is 220 to 240VAC at 50Hz and the rated current is 10 Amp. The USB port output is 25W. The product has thermal fuse protection. The dimensions are (W) 78mm x (H) 120mm x (D) 55mm. The product requires installation by a qualified electrician.
Key Specifications
| Barcode (EAN-13) |
9311554816032
|
|---|---|
| SKU |
CLI3025USBCVW
|
| Brand |
Clipsal
|
| Range Name |
Iconic
|
| Product Type |
Switched Outlets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 3025USBC-VW |
| Colour | White |
| Connection Type | 3 Screw |
| Current | 10 Amp |
| Depth | 44 mm |
| Finish | Matte |
| Frequency | 50 Hz |
| Height | 120 mm |
| Material | Polycarbonate/Polypropylene/Polyoxymethylene/ABS |
| Mounting Method | Flush |
| Orientation | Horizontal |
| Pin Configuration | 3 Pin |
| Temperature | 0 to 45 deg C |
| Terminal Capacity | 1 x 2.5 to 4 x 2.5 sq-mm |
| Voltage | 220-240 Volt |
| Width | 78 mm |
