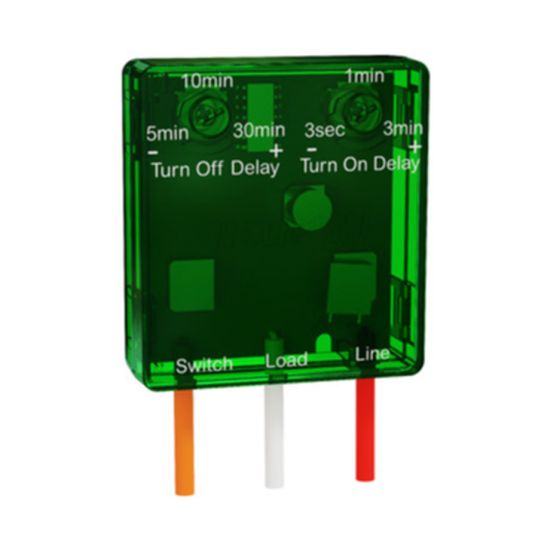

Clipsal Run On Timer 1A 230-240VAC Translucent Green Glossy IP30

Designed for added convenience and to help save energy, this Clipsal Standard Series run on a timer that has selectable turn ON and turn OFF delays. When used alongside an exhaust fan and light switch, this device allows the exhaust fan to continue running even after the light switch is turned off. The selectable delay turns off the exhaust fan 5, 10, or 30 minutes after the light is switched off. You can also determine when the turn off delay is triggered, be it 3 sec, 1 min or 3 mins. The device has a small timer that is designed to sit behind the wall plate to easily comply with building regulations, and is fixed using screws. This product is designed for bathrooms that lack natural ventilation, such as those found in apartments and office buildings. The rated operating voltage is 230-240 Volt at 50 Hz and rated current 1 Amp. The load handling of the motor is 2.5-240 Watt. The dimensions of the product are (W) 41 mm x (H) 40 mm x (D) 12 mm and the weight is 17g. The color of this device is translucent green. It is made of plastic material. The ambient air temperature for operation is from 0 up to +50 deg C. It reaches IP30 degree of protection. The control of the exhaust fan run on time is based on the lighting switch status. It also has a small, compact design for easier installation. This device is compliant with AS/NZS 60335.1.2020+A1 and AS/NZS 60335.2.80.2016+A1+A2 standards.
