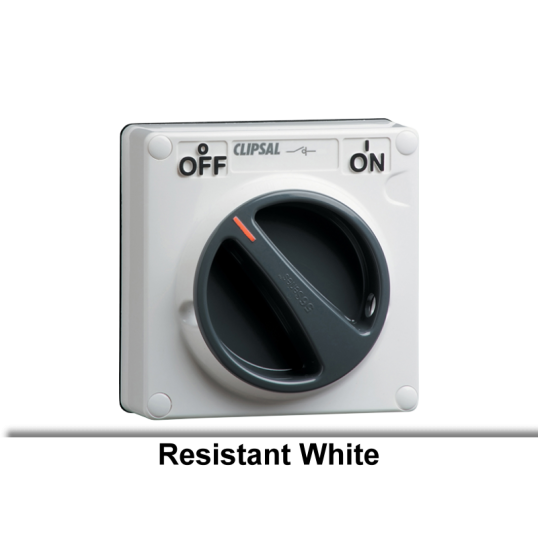

Clipsal Isolating Switch Less Enclosure 1P 10A 250V Chemical Resistant White IP66
Description
Isolator Switch, 250 Volt, 10 Amp, 50 Hz, 1 Gang, 1 Pole, ON/OFF, Rotary, Screw Connection, Surface Mounting, IP66, Polycarbonate, White, -25 to 75 deg C, 107 mm Height, 101 mm Width, 70 mm Depth, Less Enclosure
Key Specifications
| Barcode (EAN-13) |
9311554339128
|
|---|---|
| SKU |
CLI56SW110LERW
|
| Brand |
Clipsal
|
| Range Name |
56 Series
|
| Product Type |
Isolating Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | 56SW110LE-RW |
| Colour | White |
| Connection Type | Screw |
| Current | 10 Amp |
| Depth | 70 mm |
| Frequency | 50 Hz |
| Height | 107 mm |
| IP Rating | IP66 |
| Legend | ON/OFF |
| Material | Polycarbonate |
| Method of Operation | Rotary Knobs |
| Mounting Method | Surface |
| Number Of Gangs | 1 Gang |
| Number Of Poles | 1 Pole |
| Please Note | Less Enclosure |
| Temperature | -25 to 75 deg C |
| Voltage | 250 Volt |
| Width | 101 mm |
