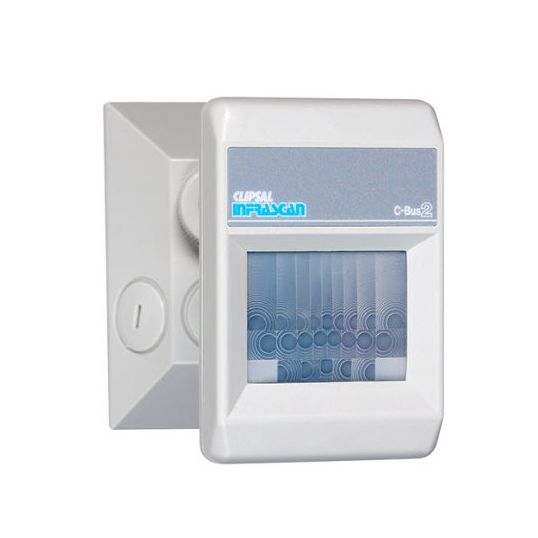

Clipsal C-Bus PIR Occupancy Sensor Outdoor Surface/Wall/Ceiling Mount 110deg IP66 Grey

chevron-left

Description

chevron-down
PIR Occupancy Sensor, 15-36 Volt DC, 18 mA, PIR Sensing Method, Lateral: 12 mtr/Frontal: 18 mtr Sensing Range, 110 deg Sensing Beam, 2.4 mtr Mounting Height, IP66, Wall/Ceiling Mounting, Plastic, Grey, 0 to 45 deg C, 74 mm Width x 111 mm Height x 138 mm Depth, 84 mm Mounting Centre

Key Specifications

chevron-down
Barcode (EAN-13)
9311554347772
SKU
CLI5750WPLGY
Brand
Clipsal
Range Name
C-Bus
Product Type
Sensors

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • C-bus PIR motion detector suitable for outdoor use
  • The unit has a field of view of 110 deg and a detection range which extends 18 mtr
  • The unit features a light threshold adjustment on the unit
  • The time delay is programmable in the range 1 sec-18 hrs
  • Features a sunset switch program
  • Draws 18 mA from a C-bus network
  • 1 channel
  • Light sensitivity adjustable setting
  • 1 lux user selectable
  • Non-volatile memory
Standard Pack Size 1
UNSPSC Class 39121800
UOM EA
Vendor Product 5750WPL-GY
Current 18 mA
Colour Grey
Dimensions 74 mm Width x 111 mm Height x 138 mm Depth
IP Rating IP66
Mounting Height 2.4 mtr
Material Plastic
Mounting Method Wall/Ceiling
Please Note 84 mm Mounting Centre
Sensing Beam 110 deg
Sensing Method PIR
Temperature 0 to 45 deg C
Sensing Range Lateral: 12 mtr/Frontal: 18 mtr
Voltage 15-36 Volt DC
