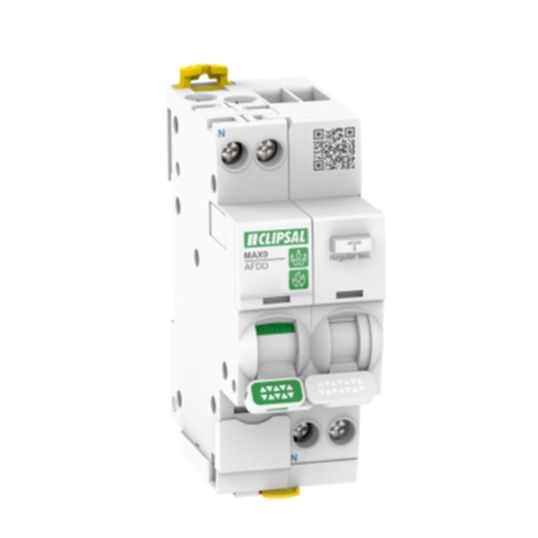

Clipsal MAX9 Arc Fault Detection (AFDD+RCBO) 1 Pole+N 6000A 10A C Curve 30mA A Type All-In One

Description

Arc Fault Detection Circuit Breaker Type A, 240 Volt, 10 Amp, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, C Curve, 1 + N Pole, Tunnel Type (Top or Bottom)/1-10 sq-mm Flexible/1-16 sq-mm Rigid Terminal, IP20, DIN Rail/Clip-On Mounting, White, 25 to 70 deg C, 91 mm Height, 36 mm Width, 75 mm Depth

Key Specifications

Barcode (EAN-13)	9311554813390
SKU	CLIMX9A3210
Brand	Clipsal
Range Name	Max9
Product Type	Arc Fault Detection

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	MX9A3210
Colour	White
Current	10 Amp
Height	91 mm
Depth	75 mm
Frequency	50 Hz
Interrupt Capacity	6 kA
Mounting Method	DIN Rail/Clip-On
IP Rating	IP20
Number Of Poles	1 Pole
Temperature	25 to 70 deg C
Trip Characteristic	C Curve
Terminal Connection	Tunnel Type (Top or Bottom)/1-10 sq-mm Flexible - 1-16 sq-mm Rigid
Trip Sensitivity	30 mA
Voltage	240 Volt
Width	36 mm
