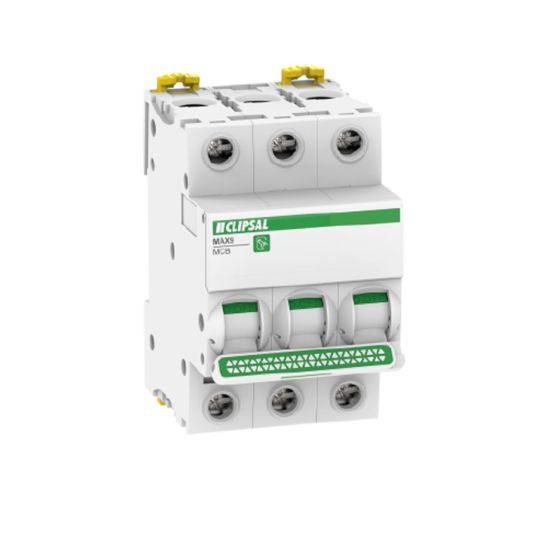

Clipsal MAX9 Miniature Circuit Breaker 3 Pole 63A 415V C Curve
Description
Miniature Circuit Breaker, 415 Volt AC, 63 Amp, 50/60 Hz, 6000 Amp Interrupt Capacity, 3 Pole, C Curve, 3.5 Nm Tightening Torque, Tunnel Type Terminals: 1-25 mm Flexible, 1-35 mm Rigid Terminal Capacity, IP20, 10000 Cycles Electrical Life, White (RAL 9003),-25 to 70 deg C, 54mm Width x 85mm Height x 75mm Depth
Key Specifications
| Barcode (EAN-13) |
9311554814038
|
|---|---|
| SKU |
CLIMX9MC363
|
| Brand |
Clipsal
|
| Range Name |
Max9
|
| Product Type |
Mini Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | MX9MC363 |
| Colour | White |
| Current | 63 Amp |
| Depth | 75mm |
| Electrical Life | 10000 Cycles |
| Frequency | 50/60 Hz |
| Height | 85mm |
| Interrupt Capacity | 6000 Amp |
| IP Rating | IP20 |
| Number Of Poles | 3 Pole |
| Temperature | -25 to 70 deg C |
| Tightening Torque | 3.5 Nm |
| Voltage | 415 Volt |
| Width | 54mm |
