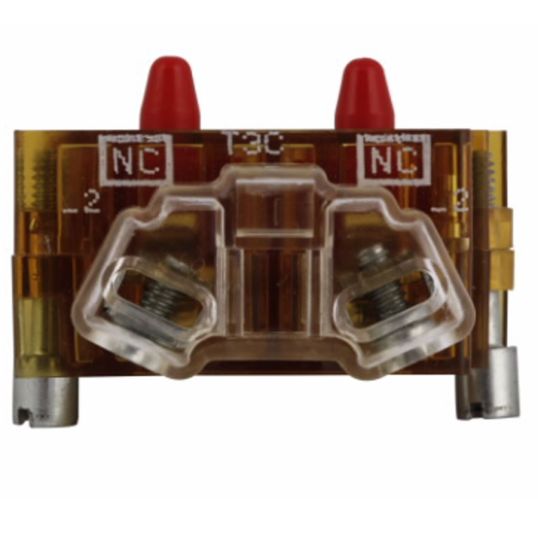

Eaton Cutler Hammer Operator Contact Block With Screw Terminals 2N.C 30.5mm

$Eaton\Eaton_10250T3P.jpg$

Description

Pushbutton Operator Contact Block, 2 Normally Closed Configuration, Screw Terminal, For Use With Standard Pushbutton, IP66, Die Cast Zinc Housing, White, 30.5 mm

Key Specifications

Barcode (EAN-13)	10782114214838
SKU	CUTT3P
Brand	Eaton Cutler Hammer
Range Name	T Series

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Die-cast metal housings create robust and heavy duty devices that can endure repetitive and heavy handed use in industrial environment IP66 rated for protection against dirt and moisture Contact blocks are colour coded, green for NO and red for NC to permit easy identification and troubleshooting Up to 6 contact blocks can stack on each other, allowing for up to 12 circuits per operator Heavy duty zinc die cast construction Enclosed silver contacts with reliability nibs All normally closed contacts have positive opening operation, i.e., normally closed contacts are forced open in the event of contact weld or spring breakage Grounding nibs on the operator casing Logic level contact blocks have palladium tipped contacts to ensure circuit integrity down to 1 mA at 5 volt AC/DC
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	T3P
Colour	White
For Use With	Standard Pushbutton
Contact Configuration	2 Normally Closed
Housing Material	Die Cast Zinc
IP Rating	IP66
Size	30.5 mm
Terminal Connection	Screw
