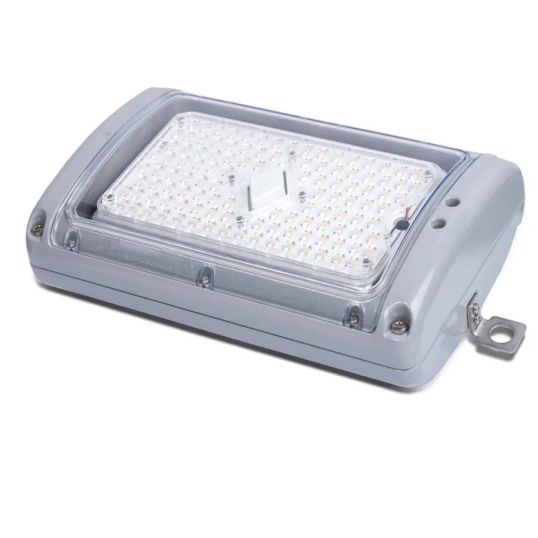

Dialight SafeSite LED Bulkhead Battery Backup w/Flush Bracket Zone 1 21 25W 230-240VAC 4K Ultra-Wide (Type 1)
Description
LED Bulkhead, LED, 25 Watt, 230-240 Volt AC, 3100 lm, Neutral White, 4000K, Ultra-Wide (Type 1) Beam, Zone Zone 1, 21, IP66/67, >0.9 Power Factor, A360 Die-Cast Aluminium Body, Clear Polycarbonate Lens, 220mm Height, 350mm Width
Key Specifications
| SKU |
DIABHA-4UNG-3NFN-VGF
|
|---|---|
| Brand |
Dialight
|
| Range Name |
SafeSite
|
| Product Type |
Luminaires Bulkhead
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39111900 |
| UOM | EA |
| Vendor Product | BHA-4UNG-3NFN-VGF |
| Body Material | Aluminium |
| Beam Type | Ultra Wide |
| Colour Designation | Neutral White |
| Colour Temperature | 4000K |
| Height | 220 mm |
| IP Rating | IP66/67 |
| Light Source | LED |
| Lens Material | Polycarbonate |
| Lumens | 3100 lm |
| Power Factor | >0.9 |
| Voltage | 230-240 Volt |
| Wattage | 25 Watt |
| Width | 350 mm |
| Zones | Zone 1/21 |
