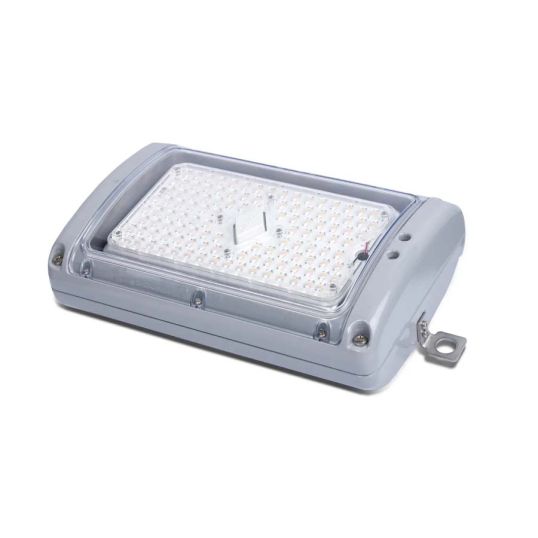

Dialight SafeSite LED Bulkhead Pole Mount Zone 1 21 45W 4K Clear Polycarbonate Lens Ultra-Wide (Type 1)
Description
SafeSite Bulkhead Pole Mount Zone 1, Clear Lens, Ultra-Wide, 4000K, 120-277VAC/120-250 Volt DC , 6200 Lumens, 45W, 1xM25, Grey, [ATEX/IECEx Zone1].
Key Specifications
| SKU |
DIABPA-4UN2-6NNN-VGN
|
|---|---|
| Brand |
Dialight
|
| Range Name |
SafeSite
|
| Product Type |
Luminaires Bulkhead
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39111900 |
| UOM | EA |
| Vendor Product | BPA-4UN2-6NNN-VGN |
| Body Material | Aluminium |
| Beam Type | Ultra Wide |
| Colour Designation | Neutral White |
| Colour Temperature | 4000K |
| Finish | Sealed Polyester Topcoat/Epoxy Primer |
| Height | 220 mm |
| IP Rating | IP66/67 |
| Light Source | LED |
| Lens Material | Polycarbonate |
| Mounting Method | Pole |
| Lumens | 6200 lm |
| Power Factor | >0.9 |
| Wattage | 45 Watt |
| Width | 559 mm |
| Zones | Zone 1/21 |
