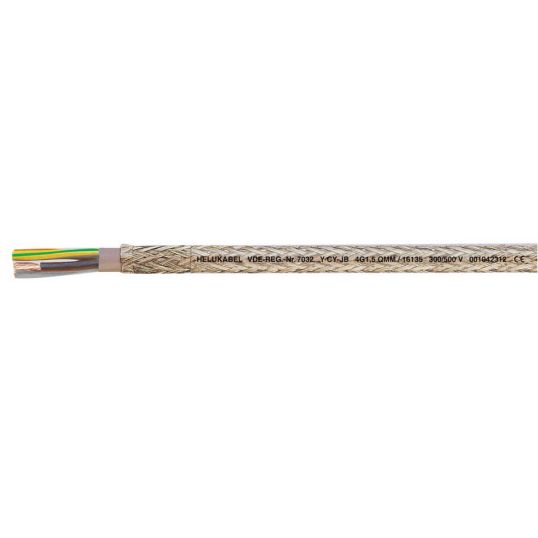

Helukabel Y-CY-JB Flexible Control Cable VSD EMC Screened 3 Core & Earth 1mm 300/500V Copper PVC/TCBS/PVC Clear
Description
Flexible Control Cable VSD EMC, 1 mm, Bare Copper, 300-500 Volt, 3 Core + Earth, 11.9 mm Overall Diameter, 1 mm Earth Conductor, Static 45 mm Flexible 90 mm Bend Radius, 0.8 mm Insulation Thickness, 1.3 mm Sheath Thickness, 250 Ohm/km Conductor Resistance, 20 MOhm/km Insulation Resistance, 85% Screen Coverage, Tinned Copper Braid Screen, Brown/Black/Grey/Green/Yellow Core, PVC Compound Type Z 7225 Insulation, PVC Sheath, Clear Sheath, Static -40 to 80 deg C Flexible -15 to 80 deg C, VDE 0285-525-2-51 EN 50525-2-51
Key Specifications
| SKU |
DKSPC4G1CY
|
|---|---|
| Brand |
Helukabel
|
| Product Type |
Flexible Control Cable VSD EMC
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | PC4G1CY |
| Bend Radius | Static 45 mm - Flexible 90 mm |
| Conductor Resistance | 250 Ohm/km |
| Core Colours | Brown/Black/Grey/Green/Yellow |
| Conductor Size | 1 mm |
| Conductor Type | Bare Copper |
| Earth Conductor Size | 1 mm |
| Insulation Material | PVC Compound Type Z 7225 |
| Insulation Resistance | 20 Mohm/km |
| Insulation Thickness | 0.8 mm |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 11.9 mm |
| Screen Coverage | 85% |
| Screen Material | Tinned Copper Braid |
| Sheath Colour | Clear |
| Sheath Material | PVC |
| Sheath Thickness | 1.3 mm |
| Standards | VDE 0285-525-2-51 EN 50525-2-51 |
| Temperature | Static -40 to 80 deg C Flexible -15 to 80 deg C |
| Voltage | 300-500 Volt |
