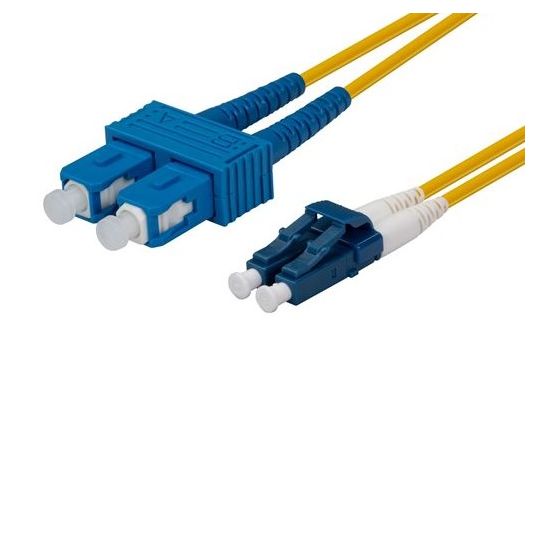

Dynamix Fibre Optic Patch Lead Duplex Single-Mode OS2 9um/125um LC-SC LSZH Yellow 0.5m

$Dynamix\Dynamix_FSM-LCSC-0.jpg$

Description

Fibre Optic Patch Lead, Duplex Single-Mode, Connector A: LC, Connector B: SC, 2 Fibre Count, Single-Mode, Fibre Type: 9 um Fibre 125 um Buffer OS2, 0.5 mtr Cord Length, 2mm OD, Insertion Loss: <0.3 dB, LSZH Sheath, Yellow Sheath, Boot Colour: Blue, Green

Key Specifications

Barcode (EAN-13)	3967633015702
SKU	DYNFSM-LCSC-0
Brand	Dynamix
Product Type	Patch Leads Fibre

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	100% tested and certified Manufactured and tested to below 0.3 dB insertion loss Test results are supplied with every lead All patch leads are LSZH and patch cord is RoHS compliant Fibre connectors are machine polished for consistent quality G.657.A bend insensitive fibre
Standard Pack Size	1
UNSPSC Class	43223300
UOM	EA
Vendor Product	DYNFSM-LCSC-0
Connector A	LC
Boot Colour	Blue/Green
Connector B	SC
Cord Length	0.5 mtr
Fibre Count	2
Fibre Mode	Single-Mode
Fibre Type	9 um Fibre 125 um Buffer OS2
Insertion Loss	<0.3 dB
Outside Diameter	2 mm
Sheath Material	LSZH
Sheath Colour	Yellow
