Eaton RCBO Type A 230-240 VAC 40 Amp 6 kA 1 Pole + N 10 mA IP20/40 1 Module 17.6 mm

$Eaton\Eaton_eRBXC-1N-C.JPG$

Description

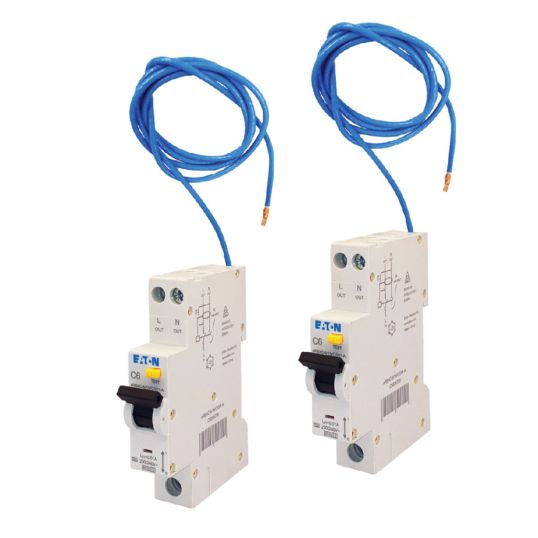

Expand your possibilities with Eaton's compact 18 mm RCBO. At the same physical size as a standard single pole MCB, the eRBXC RCBO is designed for small assemblies and big savings! The new RCBO is a single pole plus switched neutral device which enhances safety. The compact single pole size allows more poles to fit into assemblies offering a cost effective solution.

Key Specifications

Barcode (EAN-13)	9321289227638
SKU	EATCBE05761
Brand	Eaton

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fully conforms to AS/NZS 61009.1 Compliant to Energy Safe Victoria - Additional Testing Requirements for RCBOs. Suits both Eaton xCAPS318 and xIC3 series busbar Rated current up to 40A Type A sensitivity devices available Approval number: NSW29220
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	CBE05761
Connection Type	Screw
Current	40 Amp
Depth	93 mm
Interrupt Capacity	6 kA
Modules	1 Module 17.6 mm
Frequency	50/60 Hz
IP Rating	IP20/40
Height	76.35 mm
Number Of Poles	1 Pole
Temperature	-5 to 55 deg C
Terminal Connection	1 - 25 sq-mm
Trip Characteristic	C Curve
Trip Sensitivity	10 mA
Voltage	230-240 Volt AC
Width	17.6 mm
