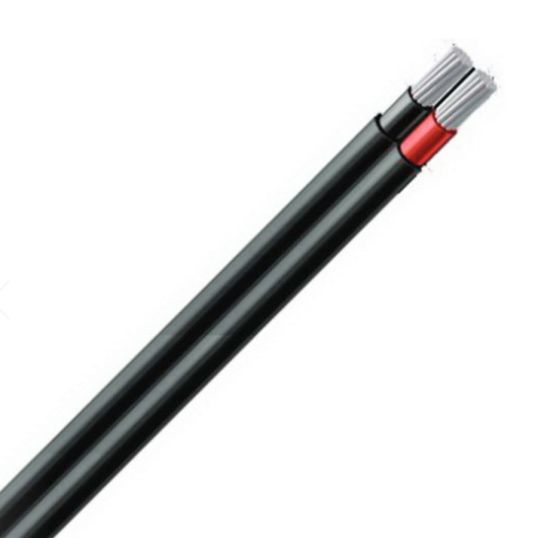

Elcon Garden Lighting Cable Double Insulated Figure 8 10mm 50/120V PVC/PVC Black
Description
Garden Lighting Cable Figure 8 Double Insulated, 10 mm, Annealed Copper, 50-120 Volt, 7 Amp, 320/0.2 mm Strands, 6 mm x 12.6 mm Overall Diameter, 1 mm Insulation Thickness, DC: 1.91 MOhm/m Insulation Resistance, V-90HT PVC Insulation, V-90HT PVC Sheath, Black Sheath, 90 deg C, AS/NZS 1125 AS/NZS 3808:2000
Key Specifications
| SKU |
ELNCG-FGL232002BM
|
|---|---|
| Brand |
Elcon Cables
|
| Product Type |
Garden Lighting Cable Figure 8 Double Insulated
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 100 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | CG-FGL232002BM |
| Conductor Size | 10 mm |
| Conductor Type | Annealed Copper |
| Current | 7 Amp |
| Insulation Material | V-90HT PVC |
| Insulation Resistance | DC: 1.91 MOhm/m |
| Insulation Thickness | 1 mm |
| Overall Diameter | 6 mm x 12.6 mm |
| Sheath Colour | Black |
| Sheath Material | V-90HT PVC |
| Standards | AS/NZS 1125 AS/NZS 3808:2000 |
| Stranding | 320/0.2 mm |
| Temperature | 90 deg C |
| Voltage | 50-120 Volt |
