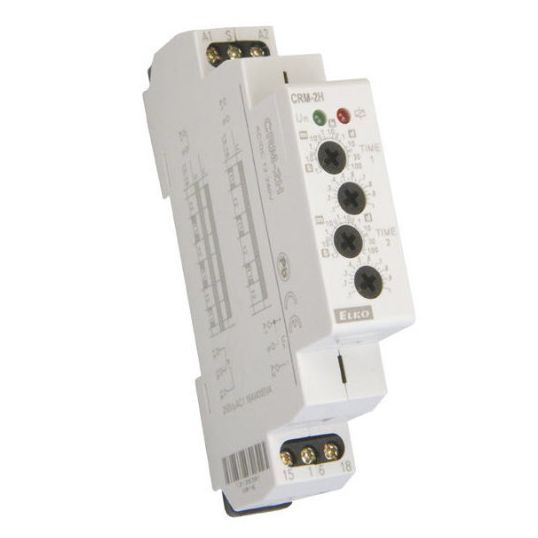

Elko Time Delay Relay Analogue DIN Rail Mount 1CO/SPDT Asymmetric Flasher 0.1s-100Day 12-240VAC/DC/230V

Description

Time Delay Relay Analogue, 12-240 Volt AC/DC/230 Volt AC, 2 VA/1.5 Watt / 3 VA/1.4 Watt AC, SPDT/1CO, Timing Function: Asymmetric Flasher, Timing Range: 0.1 sec-100 daysec, 10000000 Mechanical, 50000 Electrical Cycles, DIN Rail Mount, IP40, IP20, -20 to 55 deg C, 90 mm Height, 17.6 mm Width, 64 mm Depth

Key Specifications

Barcode (EAN-13)	8595188113007
SKU	ELOCRM-2H
Brand	Elko
Product Type	Time Delay Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	It is used for regular room ventilation, cyclic dehumidification, light control, circulating pumps, noon signs, etc 2 time functions of cycler beginning with pulse, cycler beginning with pause
Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	CRM-2H
Contact Configuration	SPDT & 1 Changeover
Depth	64 mm
Operating Cycles	10000000 Mechanical/50000 Electrical Cycles
Height	90 mm
IP Rating	IP40/20
Mounting Method	DIN Rail
Power Rating	2 VA-1.5 Watt - 3 VA-1.4 Watt AC
Temperature	-20 to 55 deg C
Voltage	12-240 Volt AC/DC/230 Volt AC
Timing Function	Asymmetric Flasher
Timing Range	0.1 Second-100 Days
Width	17.6 mm
