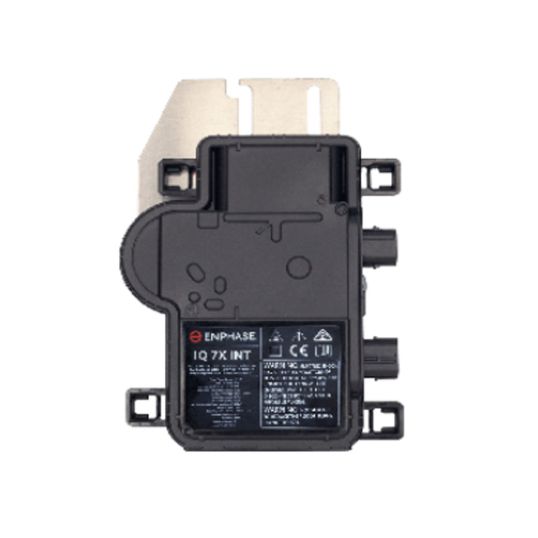

Enphase Microinverters 315VA 230/184-276V MC4 Connect

Description

Solar Microinverter, 79.5 Volt DC Input, 25-79.5 Volt DC Operating Voltage, 33-79.5 Volt DC Start-up, 315 VA AC Output, 230/184-276 Volt, 50 Hz, 1.37 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, 0.965 European Weighted Efficiency, Power Line Communication (PLC), Natural Convection Cooling, MC4 Connection, IP67, -40 to 60 deg C

Key Specifications

SKU	ENPIQ7X-96-2-INT
Brand	Enphase
Product Type	Solar Microinverter

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	IQ7X-96-2-INT
AC Nominal Voltage	230/184-276 Volt
AC Operating Frequency	50 Hz
AC Output Power	315 VA
AC Output Current	1.37 Amp
Communication Port	Power Line Communication (PLC)
Connection Type	MC4
Cooling Method	Natural Convection
DC Input Voltage	79.5 Volt
DC Operating Voltage	25-79.5 Volt
DC Start-up Voltage	33-79.5 Volt
Depth	30.2 mm
Height	175 mm
IP Rating	IP67
European Weighted Efficiency	0.965
Operating Temperature	-40 to 60 deg C
Power Factor	1 (Adjustable 0.8 Leading-0.8 Lagging)
Relative Humidity	4-100%
Width	212 mm
