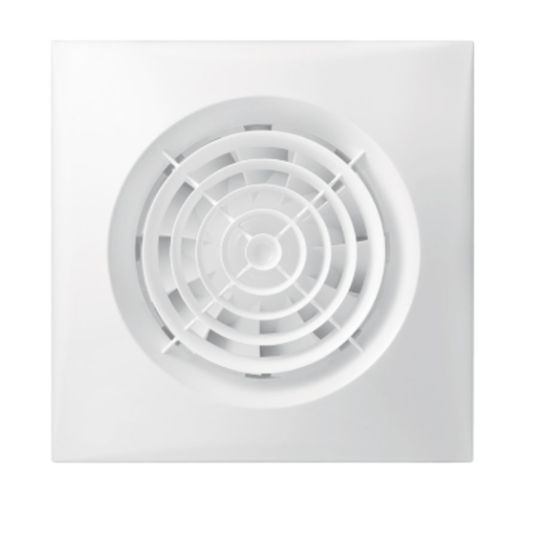

FantechTrade Exhaust Fan 100mm Square 230 Volt 95 cu-m/hr 99mm Cut-Out 27dBA at 3m White

chevron-left

Description

chevron-down
The Silent series exhaust fans are designed to solve ventilation problems in bathrooms, ensuites and toilets. They feature an advanced vibration absorbing design that enables them to run quietly, while the high performance motor and impeller exhausts air quickly and efficiently.

Key Specifications

chevron-down
SKU
FANSILENT-100S-W
Brand
FantechTrade
Product Type
Exhaust fans

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Quiet operation due to its noise and vibration absorbing design
  • Powerful air flow performance
  • Low loss foil backdraft damper is standard on all models
  • 1-30 minute adjustable run-on timer and adjustable humidistat are available on selected models
  • Internal thermal motor cut-out protection
  • Quiet operation
Standard Pack Size 1
UNSPSC Class 40101600
UOM EA
Vendor Product SILENT-100S-W
Air Flow Cubic Meters per Hour 95 cu-m/hr
Air Flow Litres per Second 26 l/sec
Colour White
Cut-Out Size 99 mm
Duct Size 100 mm
Fan Size 100 mm
Fan Speed 2400 rpm
Frequency 50 Hz
Height 158 mm
IP Rating IP45
Mounting Method Wall
Noise Level 27 dBA at 3 mtr
Phase 1 Phase
Shape Square
Voltage 230 Volt
Wattage 8 Watt
