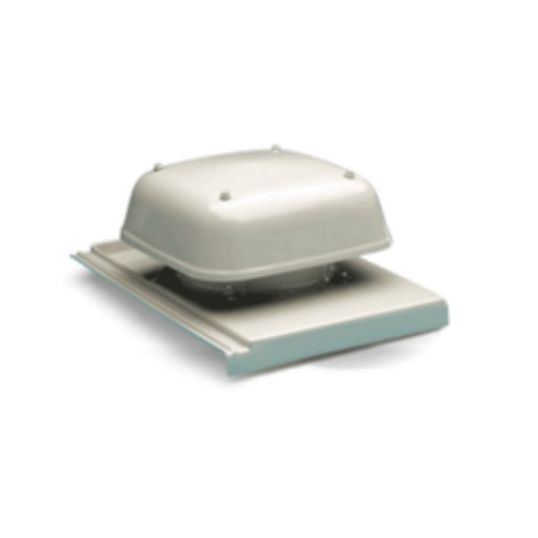

FantechTrade Roof Mounted Exhaust Fan 200mm 220/240V AC 0.14 Amp 0.03 kW 38 dBA at 3m 23 rps Black

chevron-left

Description

chevron-down
Roof Mounted Exhaust Fan, Fan Size: 200mm, 220/240 Volt AC, 0.14 Amp, 0.03 kW, 50/60 Hz, Phase: 1 Phase, 38 dBA at 3m, Speed: 23 rps, Motor Type: Squirrel Cage Induction, Roof Mounting, Steel, Black, Corrosion-Resistant, 300mm Width, 200mm Height

Key Specifications

chevron-down
Barcode (EAN-13)
932597100010
SKU
FANTFA204E
Brand
FantechTrade
Product Type
Exhaust fans

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Suitable for free and ducted intake installations
  • For ducted installations an inlet spigot is available as an optional extra
  • Designed to match Boral and Monier concrete roof tiles
  • Can be mounted at angles of 30 deg
Standard Pack Size 1
UNSPSC Class 40101600
UOM EA
Vendor Product TFA204E
Colour Black
Fan Size 200 mm
Current 0.14 Amp
Frequency 50/60 Hz
Finish Corrosion Resistant
Height 200 mm
Material Steel
Motor Type Squirrel Cage Induction
Mounting Method Roof
Phase 1 Phase
Sound Level 38 dBA at 3m
Speed 23 rps
Wattage 0.03 kW
Width 300 mm
Voltage 220-240 Volt
