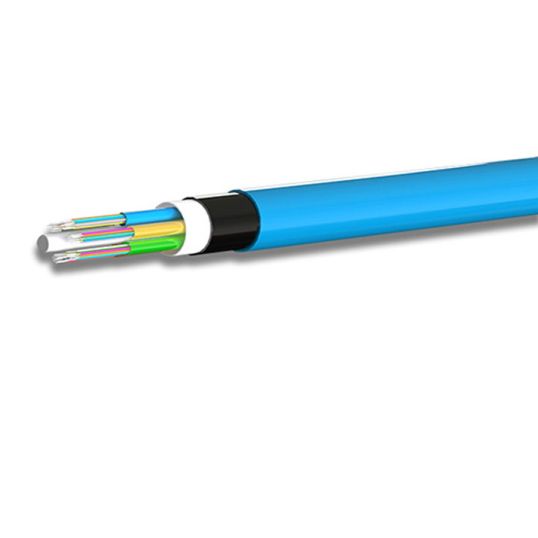

FOS Fiber Optic loose Tube Cable 24 Count Multimode OM4 Fibre Nylon Blue
Description
FOS nylon jacket dielectric loose tube cable is suited to external underground installations in ducts by pulling, jetting or floating techniques or by direct burial in open-cut trenches. Loose tube cable offers a cost-effective and rugged solution for medium and long distance external fibre runs. FOS nylon jacket loose tube cable is available in OM1, OM3, OM4 and G652.D Single mode.
Key Specifications
| SKU |
FOSF-LT24M4-NY-BU
|
|---|---|
| Brand |
FOS
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 4000 |
| UNSPSC Class | 43223300 |
| UOM | MTR |
| Vendor Product | F-LT24M4-NY-BU |
| Attenuation | <3 db/km at 850 Nm - <1.0 db/km at 1300/1310 Nm |
| Bend Radius | 192 cm Installation/14.4 cm Long Term |
| Colour Sequence | TIA 598 |
| Construction | Non-Metallic |
| Fibre Count | 24 |
| Fibre Mode | Multimode |
| Impact Resistance | 500 mm Height - 3 kg Weight - 3 Impacts |
| Fibre Type | OM4 |
| Max. Tensile Load | 2000 N Installation/1000 N Operation |
| Number of Fibres | 6-144 |
| Outside Diameter | 9.6 mm |
| Sheath Colour | Blue |
| Sheath Material | Nylon |
| Temperature | 30 to 70 deg C |
| Strength Member | Fiberglass Reinforced Plastic |
| Tube Filling | Thixotropic Gel |
