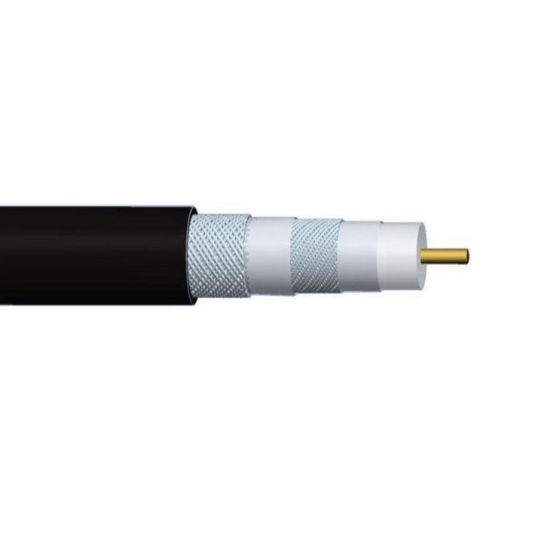

Garland Work Series RG6 Coaxial Cable Quad Shield 75Ohm 0.82mm 1/1.02mm Black 100M
Description
RG6 Coaxial Cable Quad Shield, 0.82 mm, CCS, 1.02 mm Conductor Diameter, Bend Radius: Install: 75mm, Pulling Tension: 58 N, Stranding: 1/1.02mm, Insulation Thickness: 1.74mm, Sheath Thickness: 0.72mm, Conductor Resistance: DC: 100 Ohm/km at 20 deg C, Capacitance: 53 +/-2 pF/mtr, 75 +/-3 Ohm Impedance, Aluminium Wire 56/40% Coverage Braid, Foam Polyethylene Insulation, PVC Sheath, Aluminium Foil Screen, Black Sheath, 7.5 mm Overall Diameter, 100 mtr Length,-15 to 70 deg C
Key Specifications
| Barcode (EAN-13) |
9329849020712
|
|---|---|
| SKU |
GARCC6QS100W
|
| Brand |
Garland
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 52161600 |
| UOM | MTR |
| Vendor Product | CC6QS100W |
| Product Type | simple |
| Temperature | 15 to 70 deg C |
