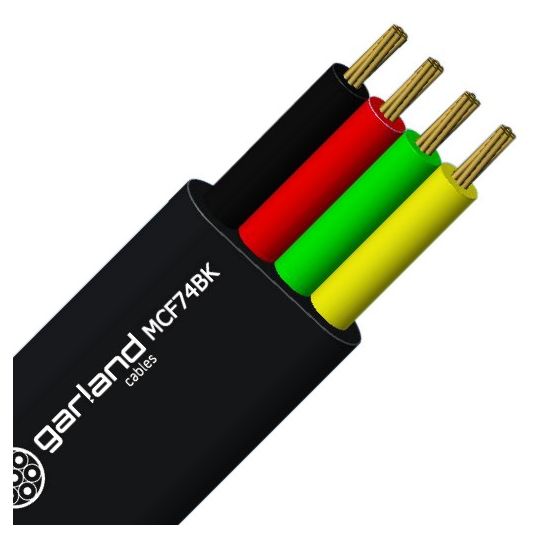

Garland Pro Series Flat Telephone Cable Interior Unscreened 4 Core 0.45mm Polypropylene/PVC Signal Black

chevron-left

Description

chevron-down
Flat multiconductor cables are used in applications where a low profile is required. This is often the case for under carpet installations. The MCF product range is used to connect telephones, modems and emergency lighting. It can also be used for analogue intercom systems. Flat profiled cables can also be used for temporary installations where cabling thru the roof or wall space would be considered to expensive or difficult to implement. Garland flat cables are PVC insulated and PVC jacketed and come in 4, 6, 8 and 10 core versions.

Key Specifications

chevron-down
Barcode (EAN-13)
9329849006365
SKU
GARMCF74BK100
Brand
Garland
Product Type
Internal Phone Cable

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 100
UNSPSC Class 26121600
UOM MTR
Vendor Product MCF74BK100
Bend Radius 23 mm Static
Conductor Diameter 0.45 mm
Conductor Material Annealed Copper
Conductor Resistance 145 Ohm/km
Conductor Size 26 AWG/0.13 mm
Insulation Material Polypropylene
Insulation Resistance 1000 MOhm/km
Insulation Thickness 0.2 mm
Max. Pulling Force 34 N
Outside Diameter 2.3 mm x 4.8 mm
Number of Cores 4 Cores
Sheath Colour Black
Sheath Material PVC
Sheath Thickness 0.6 mm
Stranding 7/0.15 mm
Temperature 15 to 70 deg C
