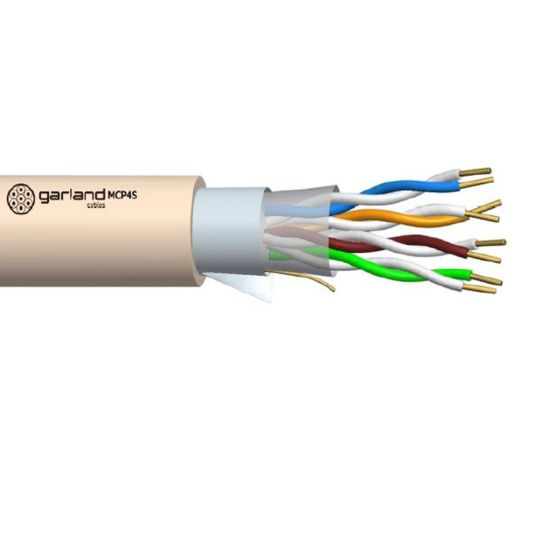

Garland 0.22mm 4 Pair Beige Data Cable Overall Screened PVC/Polypropylene

$Garland\Garland_MCP4S.jpg$

Description

Data Cable, 0.22 mm, Tinned Annealed Copper, 4 Pair, 7/0.2 mm Strands, Overall Screened Screen, 6.2 mm Overall Diameter, 62 mm Static Bend Radius, 0.28 mm Insulation Thickness, 0.65 mm Sheath Thickness, Insulation: >150% Outer Sheath: >100% Elongation, 123 N Pulling Tension, >12 MPa Tensile Strength, DC: 95.3 Ohm/km Conductor Resistance, 1000 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium/Polyester Tape Screen, Blue/White/Orange/Green/Brown Core, PVC Insulation, Polypropylene Sheath, Beige Sheath, -15 to 70 deg C, AS/CA S008 EIA-RS422 AS 1049 UL 758

Key Specifications

Barcode (EAN-13)	9329850000000
SKU	GARMCP4S100
Brand	Garland
Product Type	Data Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	MCP4S100
Bend Radius	Static 62 mm
Conductor Resistance	DC: 95.3 Ohm/km
Conductor Type	Tinned Annealed Copper
Conductor Size	0.22 mm
Core Colours	Blue/White/Orange/Green/Brown
Elongation	Insulation: >150% Outer Sheath: >100%
Insulation Material	PVC
Insulation Resistance	1000 MOhm/km
Insulation Thickness	0.28 mm
Overall Diameter	6.2 mm
Number of Pairs	4 Pair
Pulling Tension	123 N
Screen Coverage	100%
Screen Material	Aluminium/Polyester Tape
Screen Format	Overall Screened
Sheath Colour	Beige
Sheath Material	Polypropylene
Sheath Thickness	0.65 mm
Standards	AS/CA S008 EIA-RS422 AS 1049 UL 758
Tensile Strength	>12 MPa
Stranding	7/0.2 mm
Temperature	-15 to 70 deg C
