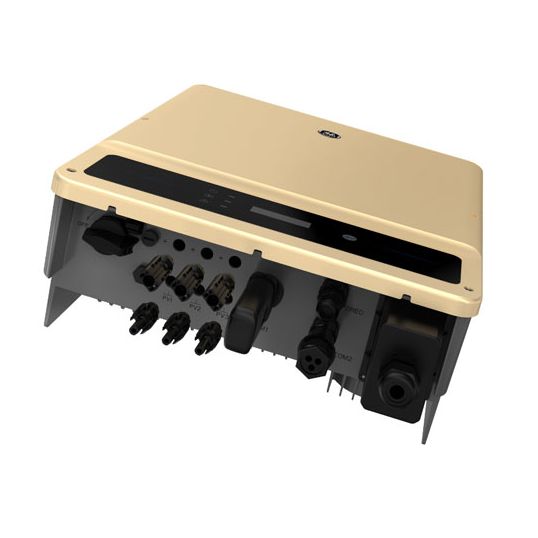

GE Solar Inverter 3 MPPT Single Phase 5kW Wi-Fi/RS485/LAN
Description
Solar Inverter Triple MPPT, 1 Phase Phase, 10000 Watt DC Input, 600 Volt DC Input, 80-600 Volt DC Operating Voltage, 360 Volt DC Nominal, 80-550 Volt DC MPPT Voltage Range, 80 Volt DC Start-up, 13 Amp DC Max. Input, 3 MPPTs, 5 kW AC Output, 4999 VA AC Max. Apparent, 230 Volt, 50 Hz, 21.7 Amp AC Output, 1 (Adjustable 0.8 Leading-0.8 Lagging) Power Factor, 0.977 Efficiency, 0.973 European Weighted Efficiency, Transformerless, Wi-Fi/RS485/LAN, LCD and LED Display, Convection Cooling, IP65, -25 to 60 deg C
Key Specifications
| SKU |
GDWGEP5.0-1C-10
|
|---|---|
| Brand |
GE
|
| Product Type |
Inverters
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26111600 |
| UOM | EA |
| Vendor Product | GEP5.0-1C-10 |
| AC Max. Apparent Power | 4999 VA |
| AC Nominal Voltage | 230 Volt |
| AC Operating Frequency | 50 Hz |
| AC Output Current | 21.7 Amp |
| AC Output Power | 5 kW |
| Communication Port | Wi-Fi/RS485/LAN |
| Cooling Method | Convection |
| DC Input Power | 10000 Watt |
| DC Input Voltage | 600 Volt |
| DC Max. Input Current | 13 Amp |
| DC MPPT Voltage Range | 80-550 Volt |
| DC Operating Voltage | 80-600 Volt |
| DC Nominal Voltage | 360 Volt |
| DC Start-up Voltage | 80 Volt |
| Depth | 175 mm |
| Display Type | LCD and LED |
| Efficiency | 0.977 |
| European Weighted Efficiency | 0.973 |
| IP Rating | IP65 |
| Height | 415 mm |
| Number of MPPTs | 3 |
| Operating Temperature | -25 to 60 deg C |
| Phase | 1 Phase |
| Power Factor | 1 (Adjustable 0.8 Leading-0.8 Lagging) |
| Relative Humidity | 0-100% |
| Topology | Transformerless |
| Width | 511 mm |
Downloads
