Goodwe Solar Inverter 4 MPPTs 1Ph 16kW 8kW/8kVA 20A 36.4 at 220 Volt/34.8 at 230 Volt/33.4 at 240 Volt IP66 600V 400V -1

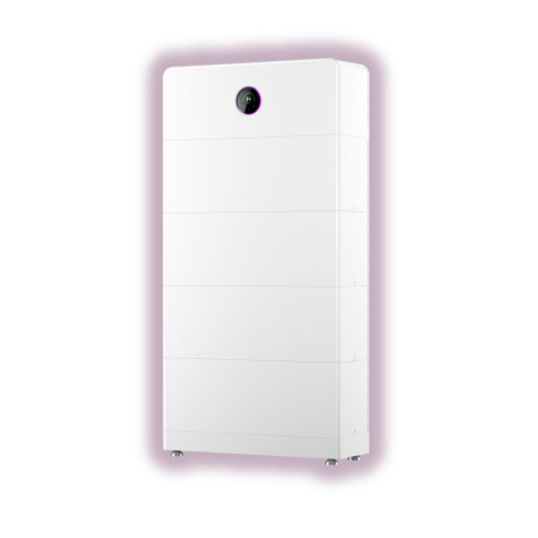

$Goodwe\Goodwe_GWxK-EHA-G20.JPG$

Description

The GoodWe ESA Series is a fully integrated all-in-one solar and storage solution that combines inverter and battery in a pre-wired, modular design-making installation significantly faster and easier. Engineered for flexibility, the ESA system allows seamless expansion to meet evolving energy needs, with scalable battery capacity for future upgrades. With its streamlined setup, the ESA Series can reduce installation time by up to 50%, making it an ideal choice for efficient and adaptable residential energy systems. It also supports dynamic tariff optimization with AI-driven EMS.

Key Specifications

SKU	GDWGW8K-EHA-G20
Brand	Goodwe
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	1C charge/discharge for rapid energy cycling Fanless design for quiet operation, noise <35 dB 20 Amp per string and 200% PV oversizing Superb safety and reliability Flexible and adaptable applications Smart control and monitoring
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	GW8K-EHA-G20
AC Max. Apparent Power	8 kVA On-Grid / 8 kVA Back-Up
AC Nominal Voltage	220 / 230 / 240 Volt L/N/PE
AC Operating Frequency	50/60 Hz
AC Output Power	8 kW On-Grid / 8 kVA Back-Up
AC Output Current	36.4 Amp at 220 Volt / 34.8 Amp at 230 Volt / 33.4 Amp at 240 Volt
Battery	380 Volt Lithium Iron Phosphate
Communication Port	RS485 / Wi-Fi + LAN + Bluetooth
Cooling Method	Natural Convection
DC Input Power	16 kW
DC Max. Input Current	20 Amp
DC Input Voltage	600 Volt
DC MPPT Voltage Range	40-560 Volt
DC Nominal Voltage	400 Volt
DC Start-up Voltage	50 Volt
Depth	270 mm
Efficiency	97.50%
Height	300 mm
IP Rating	IP66
European Weighted Efficiency	96.80%
Max. Operating Altitude	4000 mtr (>2000 Derating)
Mounting Method	Wall / Floor
Noise Level	<=35 dB
Number of MPPTs	4
Operating Temperature	-30 to 60 deg C (Derating at 40 deg C)
Phase	1 Phase
Power Factor	-1 (Adjustable from 0.8 Leading-0.8 Lagging
Relative Humidity	0-95%
Topology	Non-Isolated
Width	800 mm
