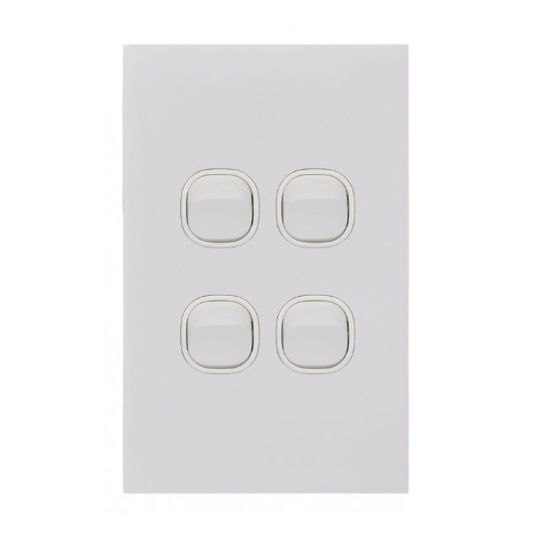

GSME Switch Plate 4 Gang 20Amp/16 AX 250Volt Switch Matte White

$GSME\GSME_CLSWV4GMW.jpg$

Description

Switch Plate, 250 Volt Switch, 20 Amp/16 AX, 4 Gang, 2 Way, Screw Connection, Brass Tunnel Terminal, 4 x 1.5 sq-mm Terminal Capacity, Vertical Orientation, Wall Mounting, 84 mm Mounting Centres, UV Stabilised Polycarbonate, White, Matte, 115 mm Height, 73 mm Width, 25.4 mm Depth

Key Specifications

Barcode (EAN-13)	9349703025981
SKU	GSMCLSWV4GMW
Brand	GSME Trader
Range Name	Clouded Leopard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Switches are rated 16AX/20 A 250 Volt and approved to AS/NZS60669-1 Fits standard Australian wall boxes and mounting accessories that use 84 mm mounting centres Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Uses brass tunnel terminals that have the screws backed out for easier installation of cabling Slotted head screws for the terminals Uses Cat Flap screw covers for IP2X rating on mounting screws
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	CLSWV4GMW
Colour	White
Connection Type	Screw
Current	20 Amp/16 AX
Depth	25.4 mm
Finish	Matte
Height	115 mm
Material	UV Stabilised Polycarbonate
Mounting Centres	84 mm
Mounting Method	Wall
Number Of Gangs	4 Gang
Number Of Ways	2 Way
Orientation	Vertical
Terminal Capacity	4 x 1.5 sq-mm
Terminal Type	Brass Tunnel
Width	73 mm
