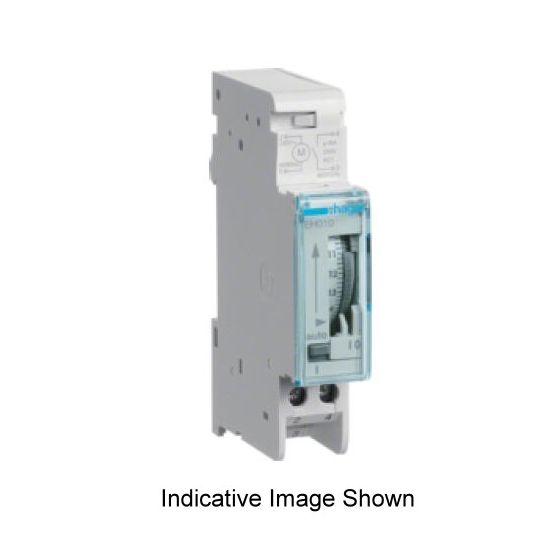

Hager Time Switch Analogue Daily Cycle 1 Channel 230V 16A 120hr Reserve 1 Module 1CO DIN Rail Mount
Description
Time Switch Analogue Daily Cycle, 230 V, 16 Amp Switching Capacity, 0.5 VA, 50 Hz, 1 Modules, 1 Channels, +/- 1 sec/Day Accuracy, Screw, 120 hr Reserve Battery Backup, 1CO, 1-4 mm Terminal Capacity, IP20, DIN Rail,-10 to 55 deg C, 80mm Height x 18mm Width x 60mm Depth
Key Specifications
| Barcode (EAN-13) |
3250612280117
|
|---|---|
| SKU |
HAGEH011
|
| Brand |
Hager
|
| Product Type |
Time Switches Analogue
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | EH011-NLA |
| Battery Backup | 120 hr Reserve |
| Accuracy | +/- 1 sec/Day |
| Connection Type | Screw |
| Contact Type | 1 Changeover |
| Dimensions | 80 mm Height x 18 mm Width x 60 mm Depth |
| Frequency | 50 Hz |
| IP Rating | IP20 |
| Modules | 1 Module |
| Mounting Method | DIN Rail |
| Power Rating | 0.5 VA |
| Number of Channels | 1 Channel |
| Temperature | -10 to 55 deg C |
| Switching Capacity | 16 Amp |
| Terminal Capacity | 1-4 sq-mm |
| Voltage | 230 Volt |
