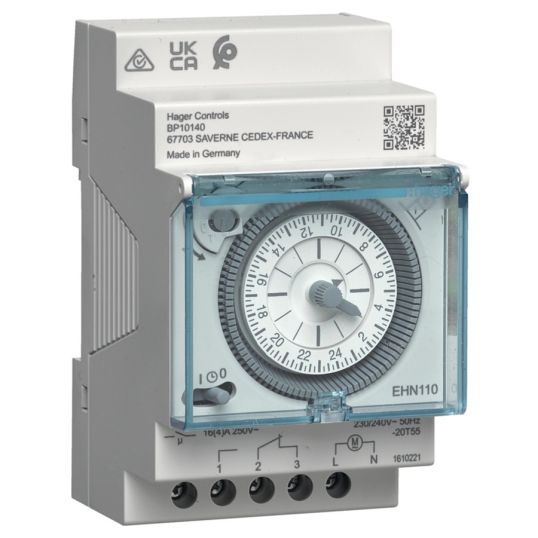

Hager Time Switch Analogue Daily Cycle 1Ch 230-240V 16A 3 Mod

$Hager\Hager_EHN110.jpg$

Description

Time Switch Analogue Daily Cycle, 230-240 Volt, 16 Amp, 0.9 Watt, 50-60 Hz, 3 Module, 1 Channel, 0 sec/Day Accuracy, Screw Connection, 24 hrs Battery Backup, 1 Changeover (NO/NC) Contact Type, 0.5-6 sq-mm Terminal Capacity, IP20, DIN Rail Mounting, 90 mm Height x 54 mm Width x 60 mm Depth

Key Specifications

Barcode (EAN-13)	3250617201070
SKU	HAGEHN110
Brand	Hager
Product Type	Time Switches Analogue

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	EHN110
Accuracy	0 sec/Day
Battery Backup	24 hrs
Connection Type	Screw
Contact Type	1 Changeover (NO/NC)
Dimensions	90 mm Height x 54 mm Width x 60 mm Depth
IP Rating	IP20
Frequency	50-60 Hz
Modules	3 Module
Number of Channels	1 Channel
Mounting Method	DIN Rail
Power Rating	0.9 Watt
Switching Capacity	16 Amp
Temperature	-20 to 55 deg C
Terminal Capacity	0.5-6 sq-mm
Voltage	230-240 Volt
