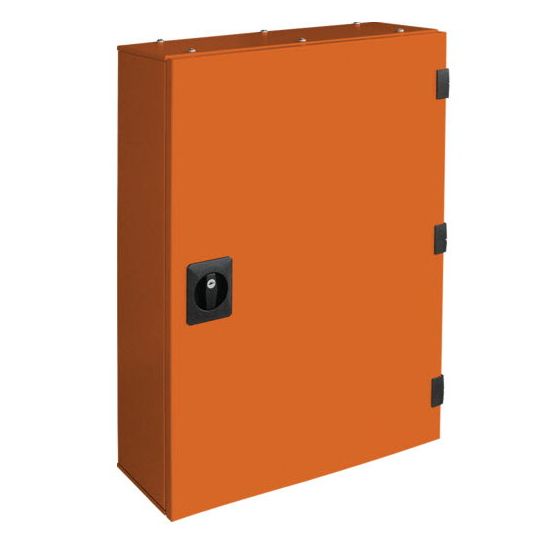

Hager Apex Distribution Panelboard W/160A MCCB Full Chassis Surface 72P 1.6mm Galvanised Steel X15 Orange IP43

Description

Distribution Panelboard, Full Chassis, 250 Amp, Number of Poles: 72, Keylock and Field Reversible Door, Surface, For Use With: MCCBs, IP43, 1.6mm Galvanised Steel, X15 Orange, Ripple Powder Coated, 1400mm Height x 600mm Width x 200mm Depth

Key Specifications

Barcode (EAN-13)	9329659001758
SKU	HAGJPA7200M16TX
Brand	Hager
Range Name	Performa Apex
Product Type	Distribution Panelboards

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Galvanised steel gland plates as standard Split neutral and earth links with bridged neutrals Type tested chassis Choice of incomer switches or MCCB device 2 x 6 pole DIN Fault current rated at 20 kA for 0.2 sec Field reversible door and hinged escutcheon Flush handle with key lock Positive MCB alignment Safety pole fillers
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	JPA7200M16TX
Colour	Orange
Current	250 Amp
Dimensions	1400mm Height x 600mm Width x 200mm Depth
Door Type	Keylock/Field Reversible
Finish	Ripple Powder Coated
IP Rating	IP43
Material	1.6mm Galvanised Steel
Mounting Method	Surface
Number Of Poles	72P
