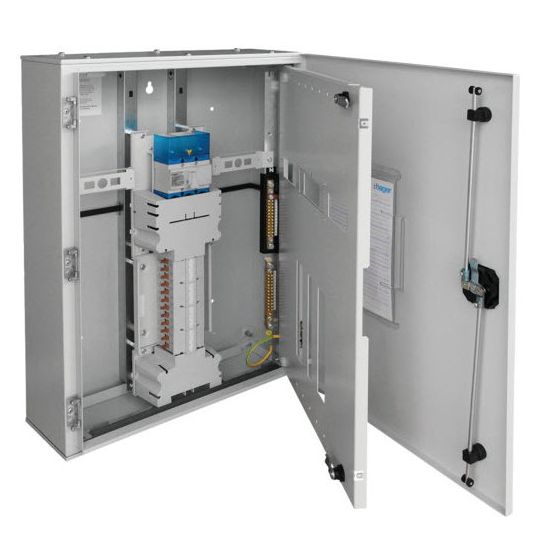

Hager Apex MCB Panelboard W/250A Main Switch Full Chassis Surface 96P 1.6mm Galvanised Steel Light Grey IP43

chevron-left

Description

chevron-down
Modular MCB Panelboard, Full Chassis, 250 Amp, Number of Poles: 96, Keylock and Field Reversible Door, Surface, For Use With: MCBs, IP43, 1.6mm Galvanised Steel, RAL7035 Light Grey, Ripple Powder Coated, 1600mm Height x 600mm Width x 200mm Depth

Key Specifications

chevron-down
Barcode (EAN-13)
9329659001925
SKU
HAGJPA9600S25TW
Brand
Hager
Range Name
Performa Apex
Product Type
Panelboards MCB

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Galvanised steel gland plates as standard
  • Split neutral and earth links with bridged neutrals
  • Type tested chassis
  • Choice of incomer switches or MCCB device
  • 2 x 6 pole DIN
  • Fault current rated at 20 kA for 0.2 sec
  • Field reversible door and hinged escutcheon
  • Flush handle with key lock
  • Positive MCB alignment
  • Safety pole fillers
Standard Pack Size 1
UNSPSC Class 39121100
UOM EA
Vendor Product JPA9600S25TW
Colour Light Grey
Current 250 Amp
Dimensions 1600mm Height x 600mm Width x 200mm Depth
Door Type Keylock/Field Reversible
Finish Ripple Powder Coated
IP Rating IP43
Material 1.6mm Galvanised Steel
Mounting Method Surface
Number Of Poles 96P
