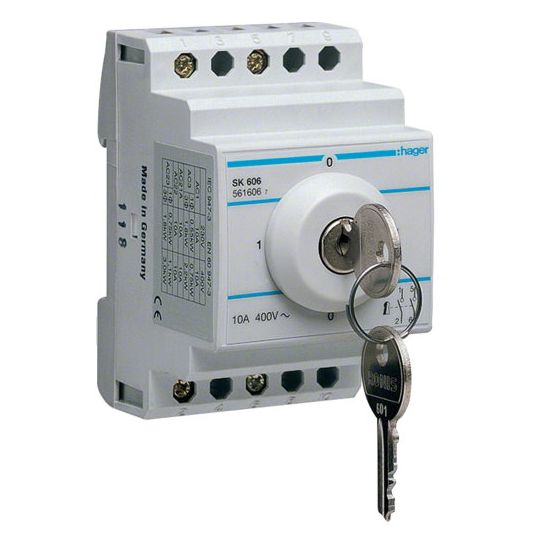

Hager Key Selector Switch 2P 10A 400V 2NO Screw DIN Rail Mount
Description
Key Selector Switch, 400 V, 10 Amp, 50 Hz, 1 W, 2 Poles, 3 Modules, 70mm Module Width, 2NO, 1.5-10 mm Flexible, 1-6 mm Rigid Conductor, Screw, IP20, DIN Rail,-10 to 40 deg C, 85mm Height x 64mm Depth
Key Specifications
| Barcode (EAN-13) |
3250615616067
|
|---|---|
| SKU |
HAGSK606
|
| Brand |
Hager
|
| Product Type |
Selector Switches
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39122200 |
| UOM | EA |
| Vendor Product | SK606 |
| Contact Configuration | 2 Normally Opened |
| Conductor Size | 1.5-10 sq-mm Flexible/1-6 sq-mm Rigid |
| Dimensions | 85mm Height x 64mm Depth |
| Connection Type | Screw |
| Current | 10 Amp |
| Frequency | 50 Hz |
| IP Rating | IP20 |
| Mounting Method | DIN Rail |
| Number Of Poles | 2 Pole |
| Modules | 3 Module 70mm |
| Power Rating | 1 Watt |
| Temperature | -10 to 40 deg C |
| Voltage | 400 Volt |
