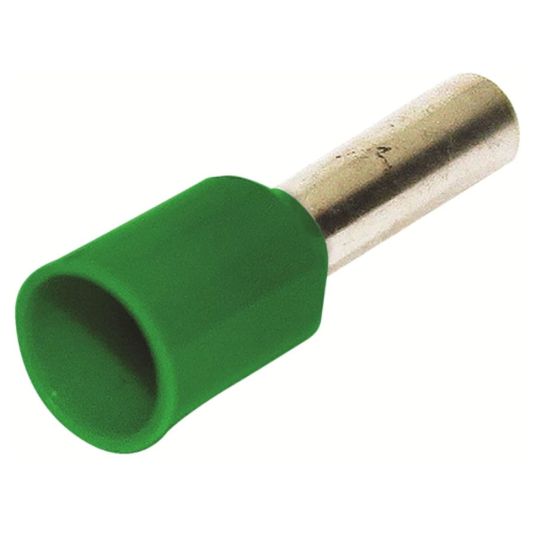

Hellermann Tyton Bootlace Ferrule Insulated Nylon Green 6mm

chevron-left

Description

chevron-down
Insulated Bootlace Ferrule, 6 mm, 1 Conductors, 12 mm Pin Length, 3.5 mm Pin Diameter, 6.3 mm Collar Inside Diameter, 20 mm Overall Length, Electro Grade Copper Sleeve, Nylon Insulation, Green Insulation, Copper Contact, 105 deg C, 50 Pack

Key Specifications

chevron-down
Barcode (EAN-13)
9349519001025
SKU
HMYBL6
Brand
Hellermann Tyton

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Colour-coded for easier identification
  • Reduces the possibility of short circuiting
  • Packaged in resealable bags
  • REACH compliant
  • Resealable bags
Standard Pack Size 50
UNSPSC Class 39121400
UOM PK
Vendor Product BL6
Collar Inside Diameter 6.3 mm
Conductor Size 6 mm
Contact Material Copper
Insulation Material Nylon
Insulation Colour Green
Number of Conductors 1
Overall Length 20 mm
Pack Size 50 Pack
Pin Diameter 3.5 mm
Pin Length 12 mm
Sleeve Material Electro Grade Copper
Temperature 105 deg C

Downloads

chevron-down

Have questions about the product?

Do you need more information? We are here to help. Click below to contact us now!
