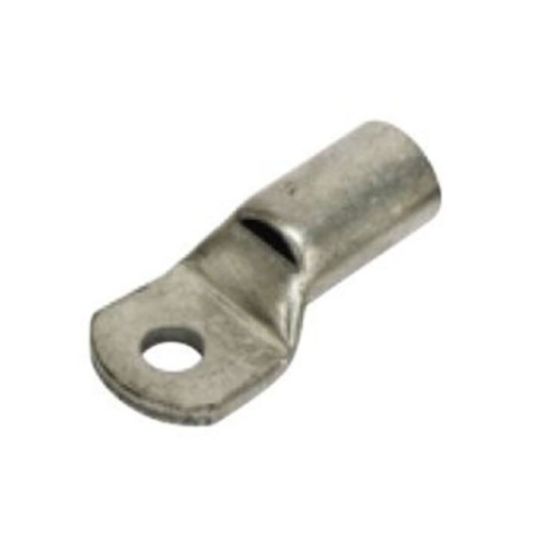

Hellermann Tyton Copper Lug Series Crimp Lug Standard Copper 16mm M8 Stud 39mm OAL
Description
Copper cable lugs are used to terminate the ends of cables and welding cables. The HellermannTyton range of Copper Lugs and Links complies with the Australian and New Zealand Standard AS/NZS 4325 Part 1:1995 and is manufactured from 99.9%+ pure, high-conductivity annealed copper, ensuring the best electrical properties possible. A crimping tool is recommended for this application.
Key Specifications
| Barcode (EAN-13) |
9349519001742
|
|---|---|
| SKU |
HMYCL16-8
|
| Brand |
Hellermann Tyton
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 50 |
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | CL16-8 |
| A-F Hex Die | 6.3 mm |
| Barrel Length | 19 mm |
| Barrel Type | Standard |
| Body Material | Copper |
| Conductive Material | Copper |
| Conductor Size | 16 mm |
| Crimping Die | HD16L/HD0560AU/HD06120AU/HYCP400/DIECU16 |
| Finish | Electro Plated |
| Inside Diameter | 5.5 mm |
| Lug Length | 16 mm |
| Lug Thickness | 1.7 mm |
| Lug Width | 14 mm |
| Number of Holes | 1 |
| Outside Diameter | 7.9 mm |
| Overall Length | 39 mm |
| Palm Size | 14 mm |
| Stud Size | M8 |
| Temperature | -55 to 155 deg C |
| Tensile Strength | 205 Mpa |
