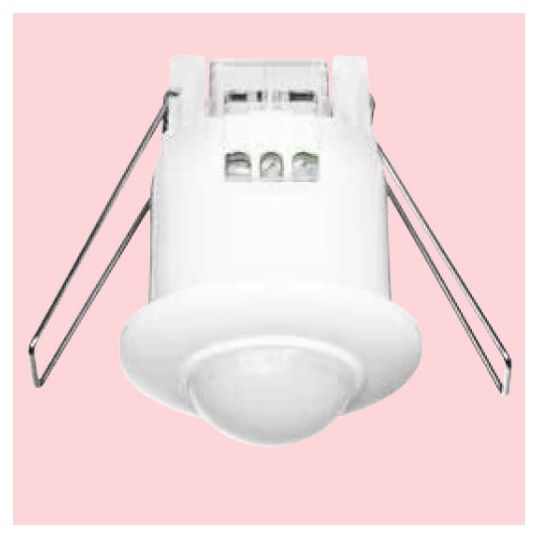

HPM PIR Movement Sensor Recessed 360deg IP20 White
Description
Ideal for bathrooms, hallways walk-in wardrobes and garages, the new 360 deg PIR Movement Sensor is a great energy saving lighting management solution.
Key Specifications
| Barcode (EAN-13) |
9321001456797
|
|---|---|
| SKU |
HPM630R01WE
|
| Brand |
HPM
|
| Product Type |
Sensors
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121800 |
| UOM | EA |
| Vendor Product | 630R01WE |
| Colour | White |
| Dimensions | 50 mm Diameter x 50 mm Depth |
| IP Rating | IP20 |
| Frequency | 50 Hz |
| Lux | 3-2000 lux |
| Please Note | 40 mm Cut-Out |
| Mounting Height | 2.2-4 mtr |
| Mounting Method | Recessed |
| Response Time | 10 sec - 15 min |
| Sensing Beam | 360 deg |
| Sensing Method | PIR |
| Switching Function | Auto Mode Only |
| Sensing Range | 6 mtr |
| Wattage | 300-800 Watt |
| Voltage | 230-240 Volt |
