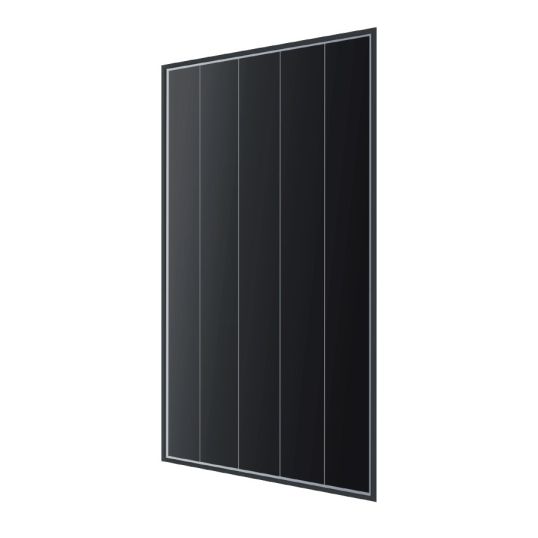

Hyundai Energy Solutions Solar Panel 440W PERC Monocrystalline 320 Cells 36V 12.13A Anodized Aluminum G12 43.7V 12.9A CE

$Hyundai_Energy\Hyundai-Energy_HIE-S440HG.jpg$

Description

Solar Panel, G12 Model, PERC Monocrystalline Cell, 320, 440 Watt, 36 Volt Maximum, 12.13 Amp Maximum, 43.7 Volt Open Circuit, 12.9 Amp Short Circuit, 25 Amp Max. Fuse, 1000/1500 Volt DC Max. System, 21.1% Efficiency, 0-5 Watt Power Tolerance, MC4-Evo2 Connector, IP68, 2 Diodes Junction Box, Meets CE

Key Specifications

SKU	HYUHIE-S440HG
Brand	Hyundai Energy Solutions
Product Type	Solar Panels

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	G12 PERC Shingled-G12 PERC Shingled Technology provides ultra-high efficiency with better performance in low irradiation. Maximizes installation capacity in limited space Mechanical Strength-Tempered glass and reinforced frame design withstand rigorous weather conditions such as heavy snow and strong wind. Reliable Warranty-Global brand with powerful financial strength provide reliable 25 year warranty UL / VDE Test Labs- Hyundai's R&D center is an accredited test laboratory of both UL and VDE
Standard Pack Size	36
UNSPSC Class	26111600
UOM	EA
Vendor Product	HIE-S440HG
Connector Type	MC4-Evo2
Certifications	CE
Efficiency	21.10%
Frame Construction	Anodized Aluminium
Item Weight	21.8 kg
Front Glass	3.2 mm AR Coated Tempered Glass
Height	30 mm
Junction Box	IP68 / 2 Diodes
Max. Fuse Current	25 Amp
Max. System Voltage	1000/1500 Volt DC
Number Of Cells	320
Model	G12
Max. Voltage	36 Volt
Output Cables	4 sq-mm / +500 mm/-1100 mm (Vertical) / +220 mm/-180 mm(Horizontal)
Operating Temperature	-40 to 85 deg C
Power Tolerance	0-5 Watt
Short Circuit Current	12.9 Amp
Temperature Coefficient	-0.34%/ deg C
Warranty	25 Years Product / 25 Years Performance
Width	1096 mm
Wattage	440 Watt
