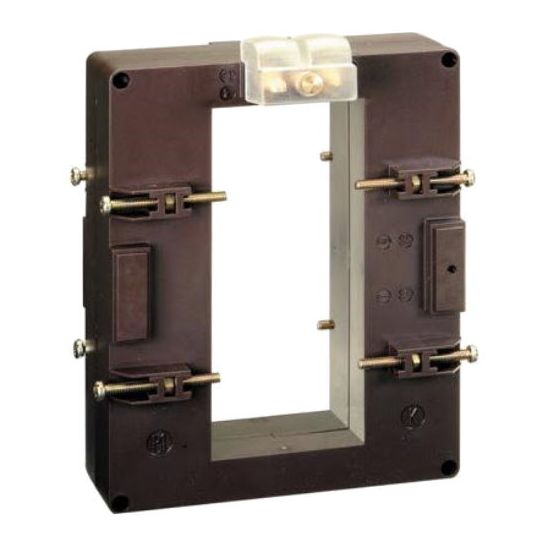

IME Current Transformer For Vertical Busbars Primary 1200A/Secondary 1A

Description

Current Transformer For Vertical Busbars, Primary 1200 Amp/Secondary 1 Amp, 50 Hz, Insulation Class: B, IP00, IP40, IP20, Busbar Mount, Polycarbonate, -25 to 40 deg C, 90 mm Height x 40 mm Width x 94 mm Depth, 65 mm Height x 32 mm Width Window

Key Specifications

SKU	IMETAS65/1200/1A
Brand	IME
Range Name	TAS65
Product Type	Transformers

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	A broad range of primary currents Cable or busbar type Solid core High accuracy Class 0.5
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	TAS6512001A
Current	Primary 1200 Amp/Secondary 1 Amp
Depth	94 mm
Frequency	50 Hz
Height	90 mm
Insulation Class	B
IP Rating	IP00/40/20
Please Note	65 mm Height x 32 mm Width Window
Mounting Method	Busbar
Temperature	-25 to 40 deg C
Width	40 mm
