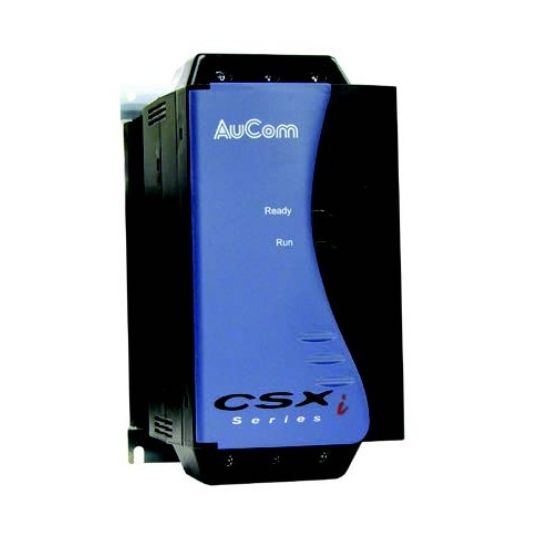

Aucom Motor Protection Soft Starter 200-440V 18kW 42A 110-240/380-440V Control C/W Bypass

$AuCom\AuCom_CSXI018V4C1.jpg$

Description

Motor Protection Soft Starter, 200-440 Volt AC, 42 Amp, 45/66 Hz, 18 kW, 110-240/380-440 Volt AC, Auxiliary Overload Relay, Excess Start Time, -10 to 60 deg C, 203 mm Height, 89 mm Width, 165 mm Depth

Key Specifications

SKU	IPDCSXI018V4C1
Brand	Aucom
Product Type	Motor Starters Soft Start

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Compact, 3 frame sizes Energy saving Simple to integrate Allows fast diagnosis of a trip via two LEDs [Ready/Run] on the front of the unit With motor protection Intergrated bypass contactors
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	CSXI018V4C1
Control Voltage	110-240/380-440 Volt AC
Current	42 Amp
Depth	165mm
Frequency	45/66 Hz
Height	203mm
Supply Voltage	200-440 Volt AC
Temperature	-10 to 60 deg C
Wattage	18 kW
Width	89mm
