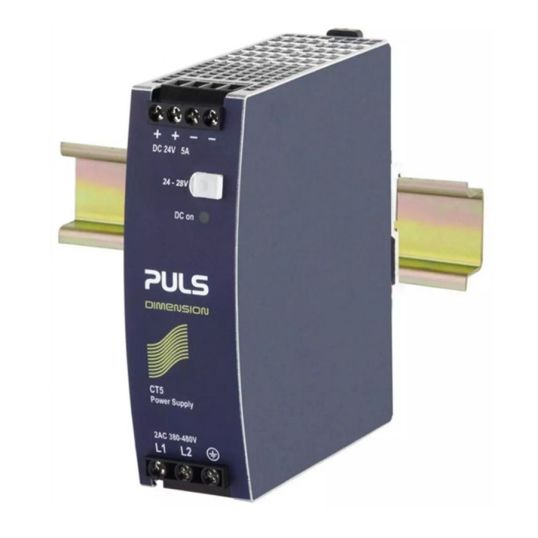

Puls CT-Series DIN Rail Power Supply 24V 5A 120W 3Phase

$Puls\Puls_CT5.241.JPG$

Description

DC Power Supply, 380-480 Volt AC Input Voltage, 24 Volt DC Output Voltage, Output: Up to 60 deg C Ambient: 5-4.3 Amp, At 70 deg C Ambient: 3.8-3.2 Amp; Input: 0.75/0.68 Amp, 120 Watt Output, 50-60 Hz, 0.45/0.43 Power Factor, 90.4/90% Efficiency,-25 to 70 deg C, 124mm Height, 40mm Width, 117mm Depth

Key Specifications

SKU	IPDCT5.241
Brand	Puls
Product Type	Power Supplies

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	AC 380-480V Wide-range Input Input fuses already included Requires only Two Legs of a 3-Phase System Width only 40mm Efficiency up to 90.4% 20% output power reserves (power boost) Input-transient blanking circuit included Minimal Inrush Current Surge Full Power Between-25 and 60 deg C 3 years warranty
Standard Pack Size	1
UNSPSC Class	39121000
UOM	EA
Vendor Product	CT5.241
Current	Out: 3.8-3.2 Amp/In: 0.75-0.68 Amp
Depth	117mm
Efficiency	90.4/90%
Frequency	50/60 Hz
Height	124mm
Input Voltage	380-480 Volt AC
Output Voltage	24 Volt DC
Output Rating	120 Watt
Width	40mm
Temperature	-25 to 70 deg C
Power Factor	0.45/0.43
