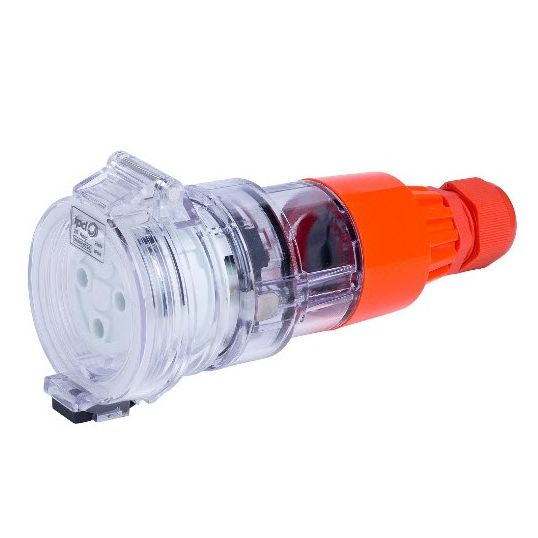

IPD Extension Socket Appliance Connector Weatherproof 1Ph 20A 250V 3 Pin 2 Flat/1 Round Earth Orange IP66
Description
Extension Socket Appliance Connector Weatherproof, Angle: Straight, 1 Phase, 20 Amp, 250-500 Volt AC, 3 Pin Flat, Round Earth, Orange, IP66, Screw, 6 mm, 8-17mm Cable Diameter, Polycarbonate, 197 mm Depth
Key Specifications
| Barcode (EAN-13) |
9322017232474
|
|---|---|
| SKU |
IPDW66ES320
|
| Brand |
IPD
|
| Product Type |
Extension Sockets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | W66ES320 |
| Angle | Straight |
| Cable Entry | 6 sq-mm |
| Cable Nominal Diameter | 8-17 mm |
| Colour | Orange |
| Connection Type | Screw |
| Current | 20 Amp |
| Depth | 197 mm |
| IP Rating | IP66 |
| Pin Configuration | 3 Pin Flat Round Earth |
| Phase | 1 Phase |
| Voltage | 250-500 Volt AC |
