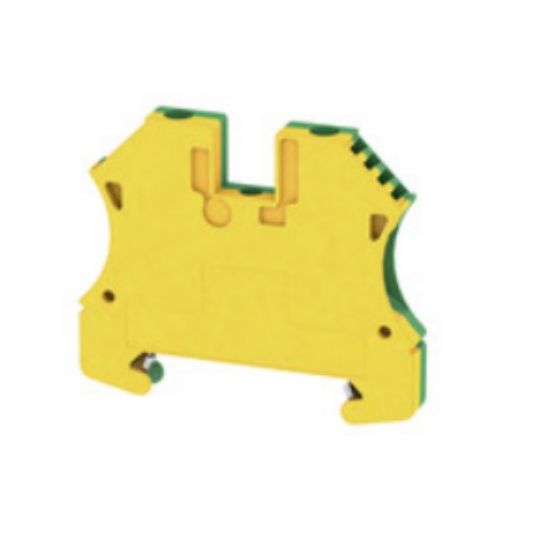

Weidmuller Klippon Rail Earth Terminal Block Screwed 2 Wire 1 Level 4mm Yellow/Green Wemid
Description
Key Specifications
SKU |
KLI1010100000
|
---|---|
Brand |
Weidmuller
|
Product Type |
Rail Earth Terminal Blocks
|
Technical Specifications
Additional Information
Standard Pack Size | 50 |
---|---|
UNSPSC Class | 39121400 |
UOM | EA |
Vendor Product | 1010100000-NLA |
Colour | Yellow/Green |
Conductor Size | 4.0mm |
Flammability | V0 |
Depth | 6.1mm |
Height | 47.5mm |
Insulation Material | Wemid |
Marking | Ex eb II C Gb |
Number of Levels | 1 |
Number of Conductors | 2 |
Number of Potentials | 1 |
Mounting Method | TS 35 DIN Rail |
Number of Connection Points | 2 |
Rated Surge Voltage | 8 kV |
Terminal Type | Screw |
Tightening Torque | 0.5-1 N/m |
Wire Entry Orientation | Side |
Voltage Rating | 800 Volt |
Width | 46.5mm |
Wire Strip Length | 10 mm |
Wiring Format | 2 Conductor Through Screw/TP |
