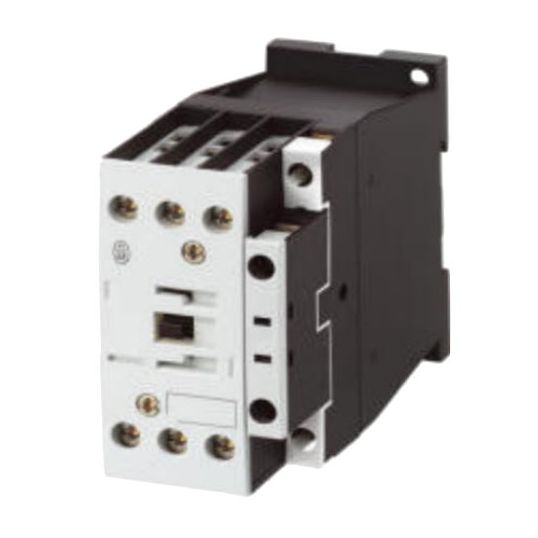

Eaton Moeller Contactor General Purpose AC Operated Non-Reversing 3 Pole 7.5kW 18A AC3 40A AC1 110/120V 1NO Auxiliary
Description
Contactor General Purpose AC Operated Non-Reversing, 110/120 Volt AC at 50/60 Hz, AC3 Rating (kW): 11 at 660/690 Volt, 7.5 at 380/400 Volt, 5 at 220/230 Volt, AC3 Rating (Amps): 18 at 380/400 Volt, AC1 Rating (Amps): 40 Open, 32 Enclosed, 440 Volt AC, 1NO Auxiliary, 3 Pole, Operating Time: 8-14 ms, Screw Terminal, DIN Rail/Base Mount, IP00, -25 to 60 deg C, 85 mm Height, 56 mm Width, 138 mm Depth, Also suitable for motors with efficiency class IE3, 3 Phase
Key Specifications
| SKU |
KLODILM17-10110V50HZ
|
|---|---|
| Brand |
Eaton Moeller
|
| Range Name |
X-Start
|
| Product Type |
Contactors Non-Reversing
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121500 |
| UOM | EA |
| Vendor Product | DILM17-10(110V50HZ-120V60HZ) |
| AC1 Rating (Amps) | 40/32 Amp AC1 |
| AC3 Rating (Amps) | 18 Amp AC3 |
| AC3 Rating (kW) | 11/7.5/5 kW |
| Contact Voltage | 440 Volt AC |
| Contact Configuration | 1 Normally Opened Aux |
| Depth | 138 mm |
| Height | 85 mm |
| IP Rating | IP00 |
| Mounting Method | DIN Rail/Base |
| Number Of Poles | 3 Pole |
| Operating Coil Voltage | 110-120 Volt AC @ 50/60 Hz |
| Operating Time | 8-14 ms |
| Please Note | Also suitable for motors with efficiency class IE3, 3 Phase |
| Temperature | -25 to 60 deg C |
| Terminal Connection | Screw |
| Width | 56 mm |
