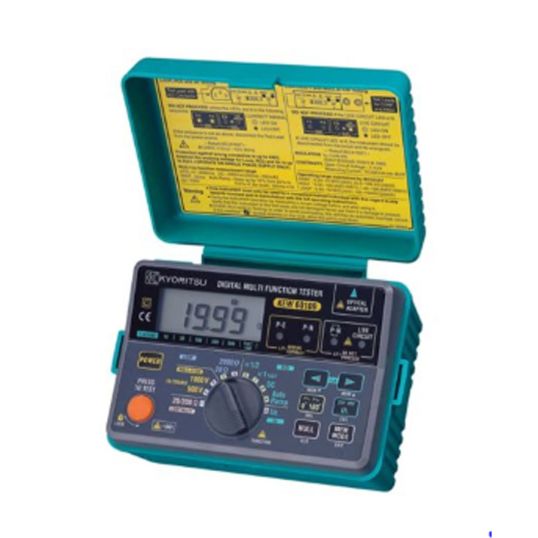

Kyoritsu Multi Function Tester 500/1000V 200mA 50Hz 10/30/100/300/500mA Range

chevron-left

Description

chevron-down
Multi-Meter, 500-1000 Volt, 200 mA, 50 Hz, 175 mm Length x 115 mm Width x 86 mm Depth

Key Specifications

chevron-down
SKU
KYO06010B029B
Brand
Kyoritsu

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Continuity testing-200 mA short circuit current
  • Insulation testing-500 Volt and 1000 Volt DC test voltages
  • Loop testing 15 mA test current on 2000 range
  • RCD testing-10/30/100/300/500 mA ranges, fast trip (150mA), Auto Ramp and DC sensitive RCDs
  • Contact voltage (Uc) up to 100 Volt
  • Mains voltage indication on Loop, RCD and Uc test
  • Live circuit warning and correct wiring check indicators
  • Built-in memory to save up to 300 test results
  • Optional USB adaptor and software (KEW Report)
Standard Pack Size 1
UNSPSC Class 41113600
UOM EA
Vendor Product 06010B029B
Current 200 mA
Dimensions 175 mm Length x 115 mm Width x 86 mm Depth
Frequency 50 Hz
Product Type simple
Voltage 500-1000 Volt
