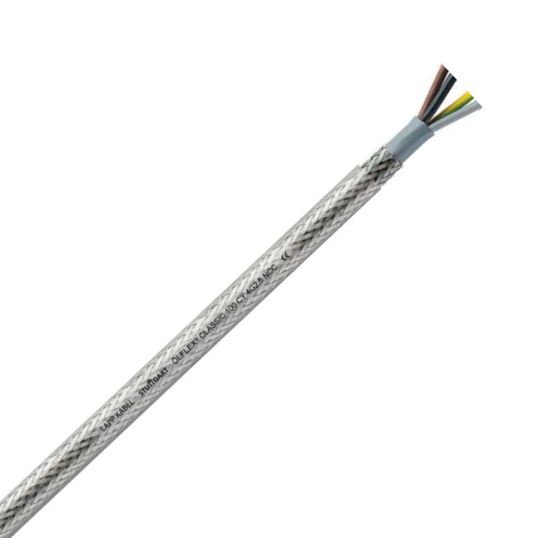

Olflex Classic 100 CY Flexible Control Cable VSD EMC Screened 2 Core & Earth 2.5mm 0.6/1kV Copper PVC/TCBS/PVC Clear

Description

Flexible Control Cable VSD EMC, 2.5 mm, Bare Copper, 450/750 Volt, 2 Core + Earth, 11.8 mm Overall Diameter, Static 70.8 mm Flexible 236 mm Bend Radius, 7.98 Ohm/km Conductor Resistance, Tinned Copper Braid Screen, Brown/Blue/Green/Yellow Core, PVC Insulation, PVC Sheath, Clear Sheath, Static -40 to 80 deg C Flexible -5 to70 deg C, IEC 60228 Class 5 EN 50525-2-51

Key Specifications

SKU	LAP0035011
Brand	Lapp Kabel
Range Name	Olflex Classic 100
Product Type	Flexible Control Cable VSD EMC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Flame retardant Good chemical resistance High degree of screening low transfer impedance
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	0035011
Bend Radius	Static 70.8 mm - Flexible 236 mm
Conductor Resistance	7.98 Ohm/km
Core Colours	Brown/Blue/Green/Yellow
Conductor Size	2.5 mm
Conductor Type	Bare Copper
Insulation Material	PVC
Number of Cores	2 Core + Earth
Overall Diameter	11.8 mm
Screen Material	Tinned Copper Braid
Sheath Colour	Clear
Sheath Material	PVC
Standards	IEC 60228 Class 5 EN 50525-2-51
Temperature	Static -40 to 80 deg C Flexible -5 to70 deg C
Voltage	450-750 Volt
