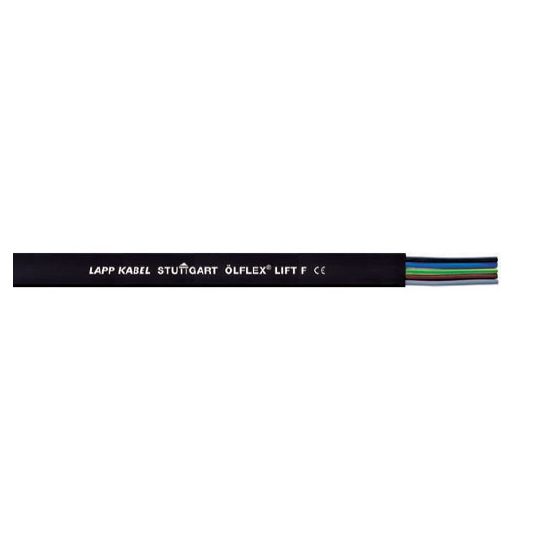

Lapp Kabel Olflex Lift F Power & Control Cable 3 Core + Earth 2.5 mm 450/750V

chevron-left

Description

chevron-down
Flat Flexible Control Cable, 2.5 mm, Bare Copper, 450-750 Volt, 3 Core + Earth, 19 mm x 5.9 mm Overall Diameter, PVC Insulation, PVC Sheath, -15 to 70 deg C

Key Specifications

chevron-down
SKU
LAP00420073
Brand
Lapp Kabel
Range Name
Olflex Lift
Product Type
Flat Flexible Control Cable

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 26121600
UOM MTR
Vendor Product 00420073
Conductor Type Bare Copper
Conductor Size 2.5 mm
Insulation Material PVC
Number of Cores 3 Core + Earth
Overall Diameter 19 mm x 5.9 mm
Sheath Material PVC
Temperature -15 to 70 deg C
Voltage 450-750 Volt
