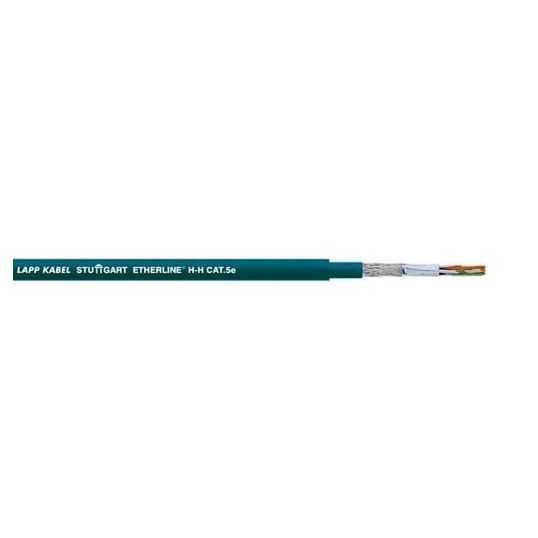

Lapp Kabel Etherline H Data Cable Cat5e 4 Pair Screened 2x24AWG Foam/Halogen Free Water Blue Bare Copper
Description
CAT 5e Data Cable, 125 Volt, Solid, 2 x 24 AWG, Cat 5e, 4 Pair, 50.4 mm Static Bend Radius, Bare Copper Conductor, Foam Insulation, Plastic Laminated Aluminium Foil Screen, Halogen Free Sheath, Blue Sheath, 6.3 mm Outside Diameter
Key Specifications
| SKU |
LAP2170296
|
|---|---|
| Brand |
Lapp Kabel
|
| Range Name |
Etherline H
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 2170296 |
| Cable Type | Cat 5e |
| Bend Radius | 50.4 mm Static |
| Conductor Size | 2 x 24 AWG |
| Conductor Type | Solid |
| Conductor Material | Bare Copper |
| Insulation Material | Foam |
| Pair Count | 4 |
| Outside Diameter | 6.3 mm |
| Screen Material | Plastic Laminated Aluminium Foil |
| Sheath Colour | Blue |
| Sheath Material | Halogen Free |
| Voltage | 125 Volt |
