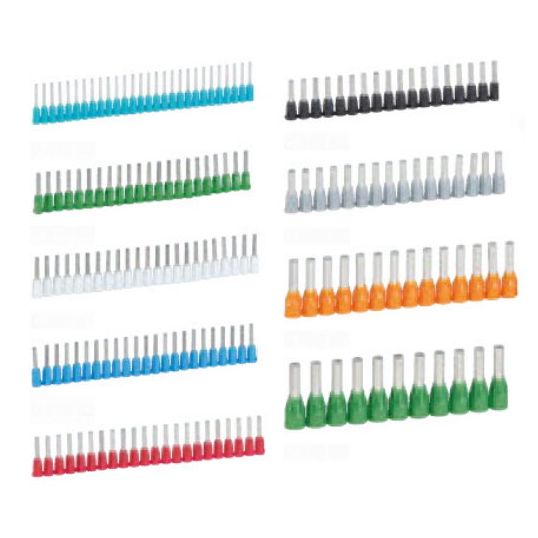

Legrand Bootlace Ferrule Insulated Single with Flange 1mm 1.7x8mm Pin Red 14.5mm OAL
Description
Insulated Single Bootlace Ferrule, 1 mm, 2 Conductors, 8 mm Pin Length, 1.7 mm Pin Diameter, 3.6 mm Collar Inside Diameter, 14.5 mm Overall Length, Electro Grade Copper Sleeve, Polypropylene Insulation, Red Insulation, Copper Contact, Tin Plated, 1000 Pack, With Flange
Key Specifications
| Barcode (EAN-13) |
3245060376635
|
|---|---|
| SKU |
LEG37663
|
| Brand |
Legrand
|
| Range Name |
Starfix
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 39121400 |
| UOM | PK |
| Vendor Product | 37663 |
| Collar Inside Diameter | 3.6 mm |
| Contact Material | Copper |
| Conductor Size | 1 mm |
| Finish | Tin Plated |
| Insulation Colour | Red |
| Number of Conductors | 2 |
| Insulation Material | Polypropylene |
| Overall Length | 14.5 mm |
| Pin Length | 8 mm |
| Pack Size | 1000 Pack |
| Pin Diameter | 1.7 mm |
| Please Note | with Flange |
| Sleeve Material | Electro Grade Copper |
