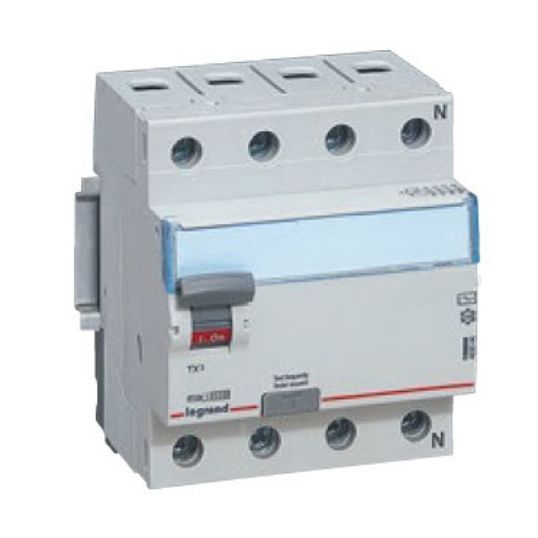

Legrand Safety Switch RCCB Type A 4Pole 80A 400V 100mA 2Module 71.2mm DIN Rail Mount

$Legrand\Legrand_Lexic_TX3_4P.jpg$

Description

Safety Switch RCCB Type A, 400 Volt, 80 Amp, 100 mA Trip Sensitivity, 2 Modules, 71.2mm Module Width, 4 Poles, C Curve Trip Characteristic, Prong, Fork Terminal, IP2X, DIN Rail, 10000 Cycles, 71.2mm Width

Key Specifications

Barcode (EAN-13)	3414970353603
SKU	LEG411777
Brand	Legrand
Range Name	Lexic TX3
Product Type	Safety Switches RCCB

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Wire guide flap Rising cage clamp terminals Bistable clamp
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	411777
Current	80 Amp
Electrical Life	10000 Cycles
IP Rating	IP2X
Modules	2 Module 71.2mm
Mounting Method	DIN Rail
Number Of Poles	4 Pole
Terminal Type	Prong/Fork
Trip Sensitivity	100 mA
Voltage	400 Volt
Width	71.2 mm
