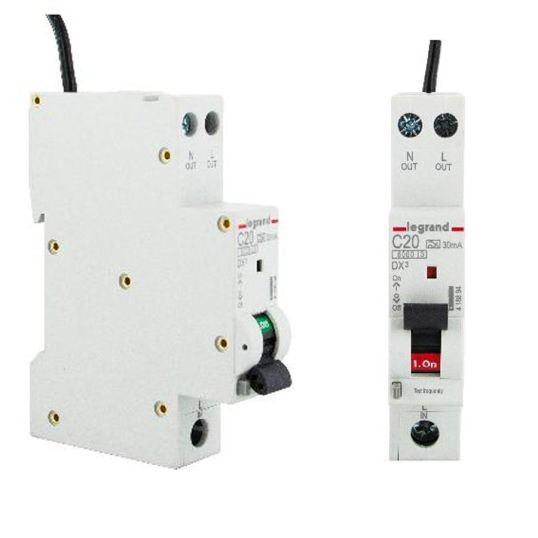

Legrand Residual Current Breaker with Overcurrent Protection (RCBO) 20Amp 6kA 30mA C Curve 1 + N Pole 1 Module
Description
The future-ready Type A Residual Current Circuit Breaker with Over Current Protection (RCBO) and integrated flexible black neutral tail is compatible with DIN rail or Chassis in Distribution boards, featuring a positive contact indicator for control. It provides protection against short circuits and overloads, and isolation of electrical circuits, protecting people from direct and indirect contact and protecting installations from insulation faults.
Key Specifications
| Barcode (EAN-13) |
3414972389310
|
|---|---|
| SKU |
LEG418894
|
| Brand |
Legrand
|
| Range Name |
DX3
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 418894 |
| Colour | Black |
| Current | 20 Amp |
| Height | 90 mm |
| Depth | 17.8 mm |
| Modules | 1 Module |
| Frequency | 50/60 Hz |
| Interrupt Capacity | 6 kA |
| Mounting Method | DIN Rail |
| IP Rating | IP20 |
| Number Of Poles | 1 Pole |
| Temperature | 25 to 40 deg C |
| Trip Characteristic | C Curve |
| Trip Sensitivity | 30 mA |
| Voltage | 230-240 Volt |
| Width | 76.7 mm |
