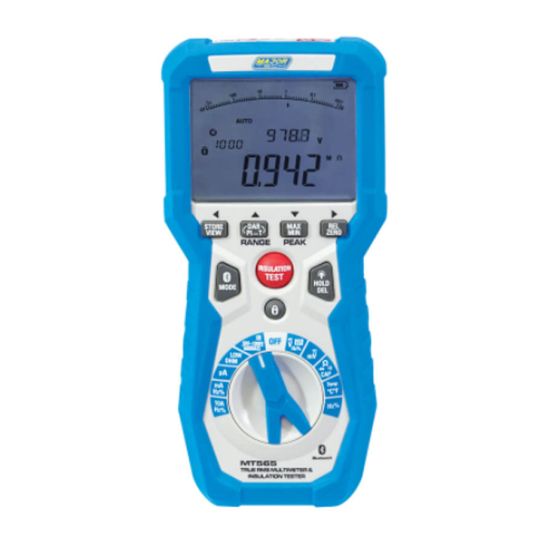

Major Tech Digital Multimeter Insulation Tester w/Bluetooth 50/100/250/500/1000V IP65 CAT IV 600V

Description

Digital Multimeter andinsulation Tester w/Bluetooth, DC: 500 mV - 1000 Volt, AC: 500 mV - 1000 Volt, DC: 500 uA - 10 Amp, AC: 500 uA - 10 Amp, 50 Hz - 50 MHz, 500 Ohm - 50 MOhm Resistance, 500 nF - 5 mF, 6 x AA Battery, -50 to 1200 deg C, 50000 Count with Analogue Bargraph Backlight LCD Display, Double Moulded Waterproof IP65 Enclosure, 210mm x 97mm x 68mm, IEC 61010-1 CAT IV 600V

Key Specifications

Barcode (EAN-13)	6008229018206
SKU	MAJMT565
Brand	Major Tech

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	IP65 double moulded rugged waterproof housing 5 insulation test ranges 50V, 100V, 250V, 500V, 1000V 50000 count with analogue bargraph backlit LCD display Measures AC and DC voltage up to 1000V Measures AC and DC current up to 10A Dielectric Absorption Ratio (DAR) Polarization Index (PI) Low pass filter for measurement of variable frequency drive (VFD) Auto discharge of voltage test signal Peak hold function for voltage and current measurements
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	MT565
Current	500 uA-10 Amp
Dimensions	210mm x 97mm x 68mm
Display Type	50000 Count with Analogue Bargraph Backlight LCD
Frequency	50 Hz-50 MHz
Power Supply	6 x AA
Product Type	simple
Resistance	500 Ohm/50 MOhm
Temperature	-50 to 1200 deg C
Voltage	500 mV 1000 Volt AC/DC
