Matchmaster Digital TV Antenna VHF/UHF 6-12/28-51 Channel 8/11dB Gain Female Connector

chevron-left

Description

chevron-down

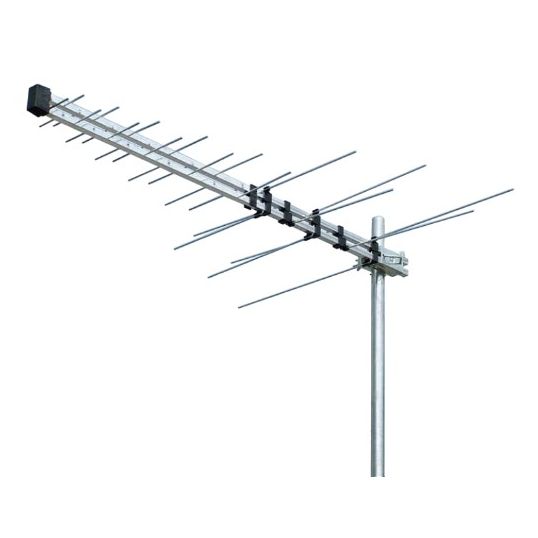

The LP03F is a VHF/UHF log periodic antenna. The LP03F offers a low-cost solution while still maintaining performance to achieve the best possible pictures for your viewing. Packaged in a five-pack, the LP03F comes ready to install with easy to use snap out elements. In addition, the LP03F is a step above the competition with a professional PCB balun mounted to the front of the antenna with a standard 'F' type fitting for termination.

Key Specifications

chevron-down
Barcode (EAN-13)
9322190009474
SKU
MAT01MM-LP03F
Brand
Matchmaster
Product Type
TV Antennas

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Cost-effective antenna for high signal areas
  • Wideband log periodic style
  • Receives channels 6-12 and 28-51
  • VHF elements 7.0mm extruded aluminium tube snap lock design
  • F' connector coax front feed on circuit board connection for superior return loss
  • Mounting clamp at the rear creates stub for improved VSWR
Standard Pack Size 1
UNSPSC Class 43221700
UOM EA
Vendor Product 01MM-LP03F
Channels 6-12 VHF 28-51 UHF
Balun Type F-Type PCB Balun
Connector Type F-Type
For Use With Digital TV
Front to Back Ratio >20 dBA
Mounting Method Horizontal
Number of Elements 32
