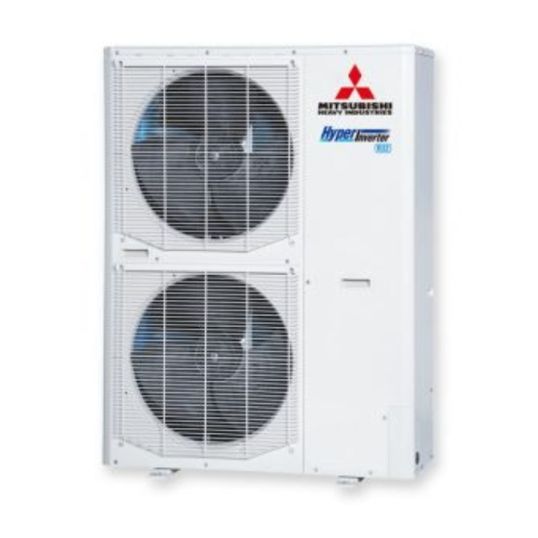

Mitsubishi Heavy Industries Outdoor Ducted Air Conditioner 12.5kW 17A Cooling 14kW 16.3A Heating R32
Description
Outdoor Ducted Air Conditioner, 12.5 kW Cooling Capacity, 14 kW Heating Capacity, 17 Amp Rated Current (Cooling), 16.3 Amp Rated Current (Heating), Cooling Air Flow Rate: P-High: 717 High: 650 l/sec, Heating Air Flow Rate: Medium: 600 Low: 500 l/sec, R32 Refrigerant, 54/70 dBA, 240 Volt 50 Hz 1 PH, 398mm x 1150mm x 650mm Indoor Dimensions, 1300mm x 970mm x 370mm Outdoor Dimensions,-15 to 50 deg C Cooling,-20 to 20 deg C Heating
Key Specifications
| SKU |
MHIFDCA125VNX-W
|
|---|---|
| Brand |
Mitsubishi
|
| Product Type |
Ducted Air Conditioning
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 40101700 |
| UOM | EA |
| Vendor Product | FDCA125VNX-W |
| Cooling Capacity | 12.5 kW |
| Cooling Air Flow Rate | P-Hi: 717 Hi: 650 l/sec |
| Heating Air Flow Rate | Med: 600 Low: 500 l/sec |
| Heating Capacity | 14 kW |
| Indoor Dimensions | 398 mm x 1150 mm x 650 mm |
| Outdoor Dimensions | 1300 mm x 970 mm x 370 mm |
| Power Supply | 240 Volt 50 Hz 1 PH |
| Rated Current (Cooling) | 17 Amp |
| Rated Current (Heating) | 16.3 Amp |
| Sound Level | 54/70 dBA |
| Refrigerant Type | R32 |
| Temperature | -15 to 50 deg C Cooling-20 to 20 deg C Heating |
